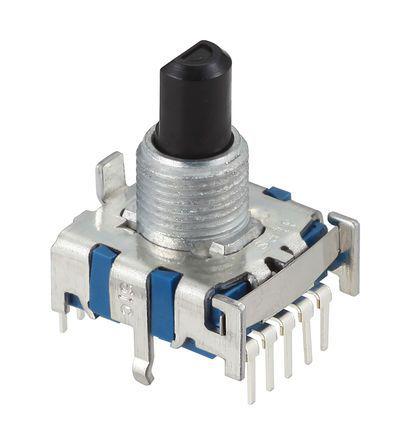

Alps Electric, 6 Position SP6T Rotary Switch, 300 mA, Pc Pin

SRBV160803 Alps Electric, 6 Position SP6T Rotary Switch, 300 mA, Pc Pin
SRBV160803 Alps Electric, 6 Position SP6T Rotary Switch, 300 mA, Pc Pin
Alps Electric

Product Information

Contact Configuration:
SP6T
Number of Switch Positions:
6
Actuator Colour:
Grey
Dimensions:
22.5 x 18.5 x 16.2mm
Mounting Type:
PCB
Width:
22.5mm
Contact Current Rating:
300 mA
Angle of Throw:
30°
Voltage Rating:
16V dc
Mounting Hole Size:
0.9 mm
Height:
16.2mm
Application:
Home Appliances, Personal Audio
Depth:
18.5mm
Minimum Operating Temperature:
-10°C
Contact Type:
Non-Shorting
Mechanical Life:
10000Cycles
Number of Contacts:
1
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
RoHs Compliant
Checking for live stock

The Alps Electric SRBV160803 is a precision-engineered rotary switch featuring a low-profile, vertical design ideal for space-constrained electronic assemblies. Part of the renowned SRBV series, this 1-pole, 6-position switch provides a tactile 30-degree changeover angle and non-shorting timing for reliable signal switching. Its compact 7.5mm body height and flatted shaft actuator make it a versatile choice for modern device interfaces, ensuring high-performance switching with a mechanical life of 10,000 cycles for long-term operational consistency.

Benefits of Buying the Product? This Alps Electric SRBV160803 rotary switch enhances design flexibility by fitting into extremely thin device housings without sacrificing tactile feedback. Its high contact reliability ensures clear signal transmission even in demanding low-current applications.

  • Vertical PCB mounting and compact dimensions save valuable board space in complex electronics.
  • The non-shorting mechanism prevents accidental circuit overlap during position transitions.

Feature Highlights

  • Slim-profile design with a minimal body height of only 7.5mm.
  • Precise 30° indexing for distinct, reliable positioning between 6 gears.
  • Durable flatted shaft actuator for secure knob mounting and easy operation.
  • Non-shorting (break-before-make) changeover timing for circuit safety.

Technical Specifications

  • Positions: 6; Poles: 1 (SP6T).
  • Rating: 0.3A at 16V DC (Max) / 50µA at 3V DC (Min).
  • Changeover Angle: 30±3°.
  • Operating Temperature: -10°C to +85°C.
  • Mounting Type: Through-hole (PC Pins).
