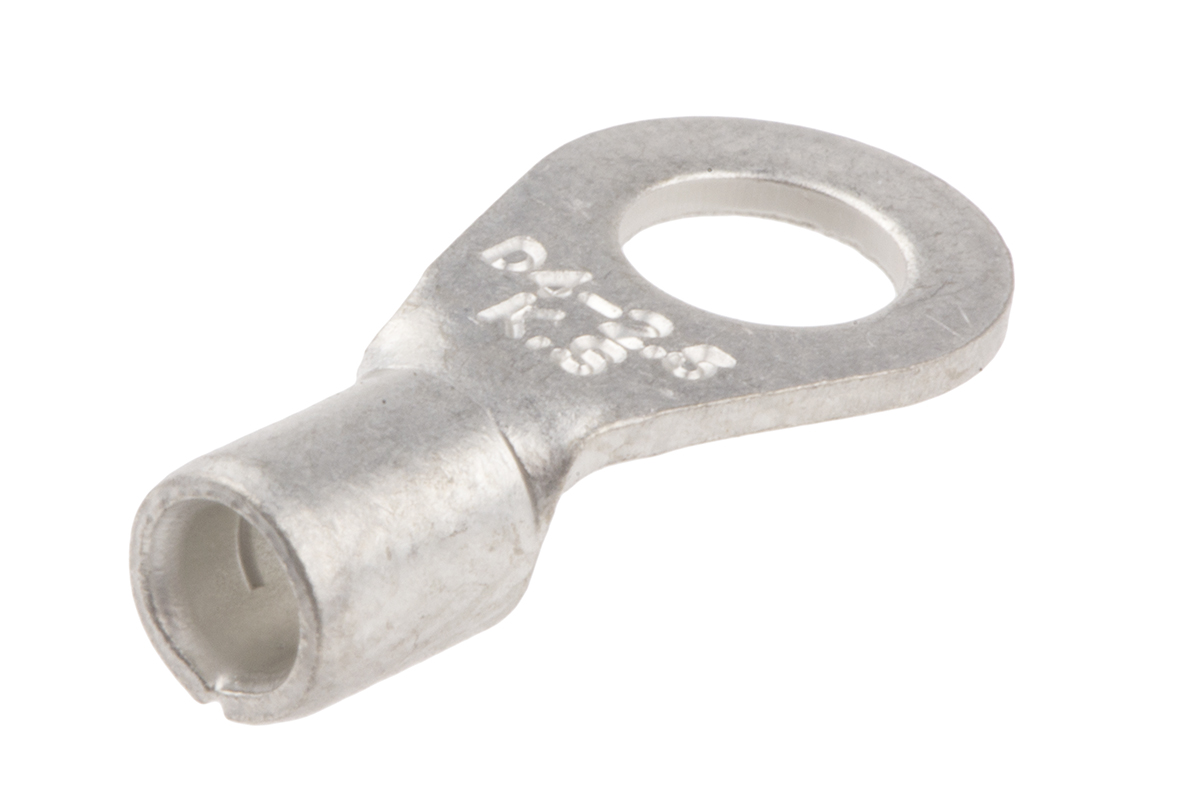

RS Pro Uninsulated Crimp Ring Terminal, #8 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG

809-2243 RS Pro Uninsulated Crimp Ring Terminal, #8 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG
809-2243
RS Pro

Product Information

Maximum Wire Size mm²:
2.5mm²
Minimum Wire Size AWG:
16AWG
Thickness:
0.8mm
Stud Size:
#8
Inner Ring Diameter:
4.3mm
Outer Ring Diameter:
8mm
Contact Plating:
Tin
Overall Length:
16mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size mm²:
1.5mm²
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal #8 Stud Size 1.5mm² to 2.5mm² 16AWG to 14AWG manufactured by RS Pro. The manufacturer part number is 809-2243. The wire has a maximum size of 2.5mm². While the minimum wire size AWG includes 16awg. It is 0.8mm thick. It has a standard #8 size stud . Moreover, the inner ring is about 4.3mm in diameter . In addition, its outlet ring diameter is about 8mm . The high-quality tin is used as contact plating material. It has an overall length of 16mm. Insulation Option: uninsulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1.5mm² of minimum size. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 809-2243 on website for other similar products.
We accept all major payment methods for all products including ET16843516. Please check your shopping cart at the time of order.
You can order RS Pro brand products with 809-2243 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Terminals category are shipped in lowest possible time.
You will get a confirmation email regarding your order of RS Pro Uninsulated Crimp Ring Terminal, #8 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG. You can also check on our website or by contacting our customer support team for further order details on RS Pro Uninsulated Crimp Ring Terminal, #8 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16843516 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "RS Pro" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16843516.
Yes. We ship 809-2243 Internationally to many countries around the world.
