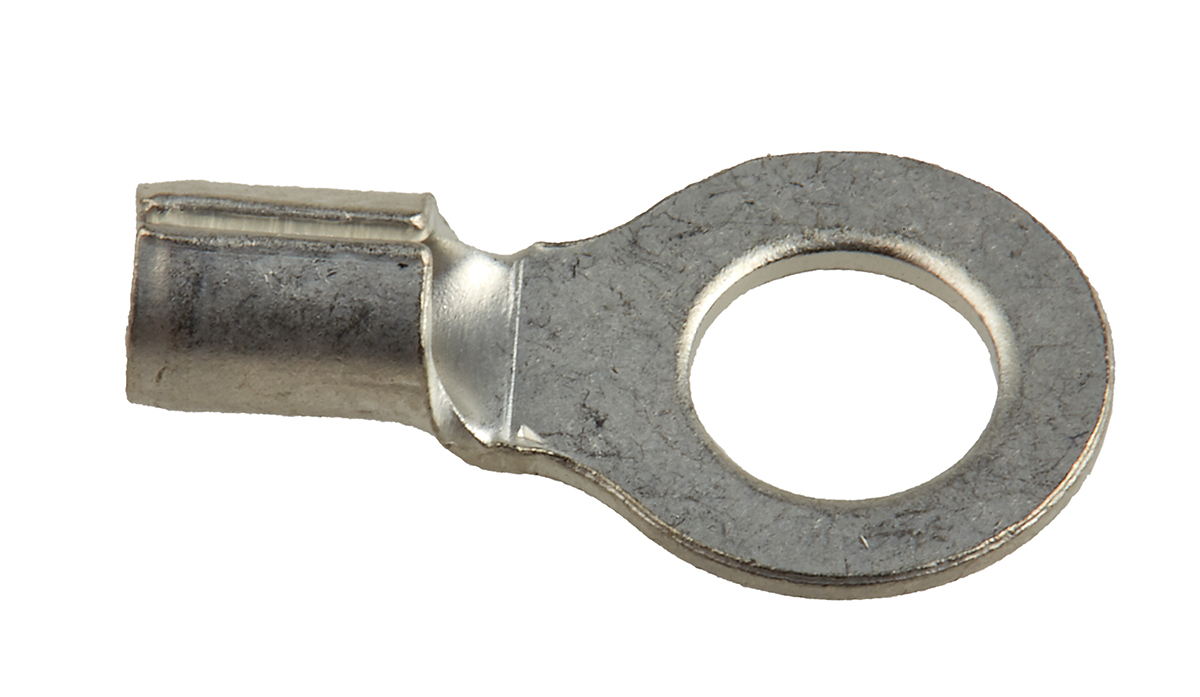

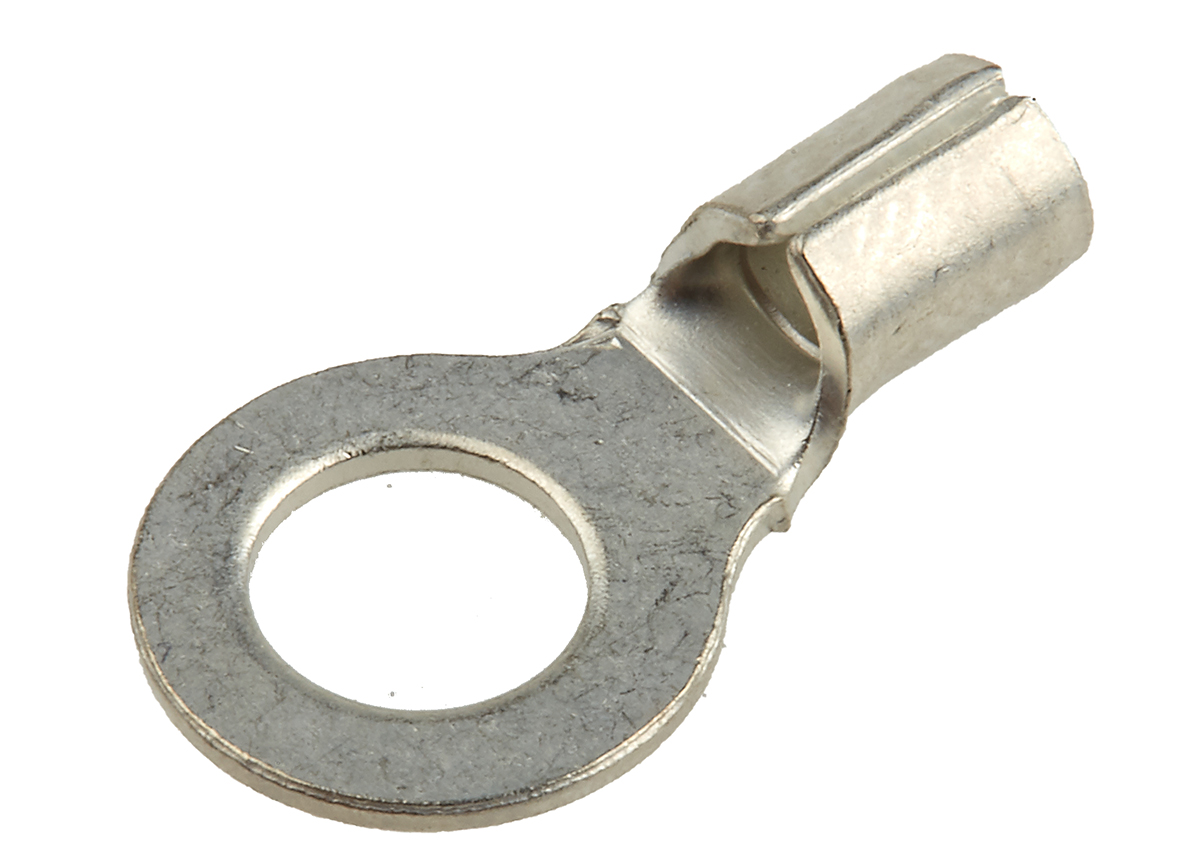

RS Pro Uninsulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG

208-2616 RS Pro Uninsulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG
208-2616
208-2616
208-2616 RS Pro Uninsulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1.5mm² to 2.5mm², 16AWG to 14AWG
RS Pro

Product Information

Minimum Wire Size mm²:
1.5mm²
Maximum Wire Size mm²:
2.5mm²
Minimum Wire Size AWG:
16 AWG
Thickness:
0.8mm
Stud Size:
M5
Inner Ring Diameter:
5.3mm
Outer Ring Diameter:
9.5mm
Contact Plating:
Tin
Overall Length:
21mm
Insulation:
Uninsulated
Standards/Approvals:
ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS
Maximum Wire Size AWG:
14 AWG
Product Type:
Ring Terminal
Maximum Operating Temperature:
150°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Tin Plated Crimp Ring Terminal M5 Stud Size 1.5mm² to 2.5mm² 16AWG to 14AWG manufactured by RS Pro. The manufacturer part number is 208-2616. On the other hand, the wire has 1.5mm² of minimum size. The wire has a maximum size of 2.5mm². While the minimum wire size AWG includes 16 awg. It is 0.8mm thick. It has a standard m5 size stud . Moreover, the inner ring is about 5.3mm in diameter . In addition, its outlet ring diameter is about 9.5mm . The high-quality tin is used as contact plating material. It has an overall length of 21mm. Insulation Option: uninsulated. Its maximum wires size includes 14 awg. ring terminal is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)
pdf icon
Manufacturer Information(Technical Reference)
