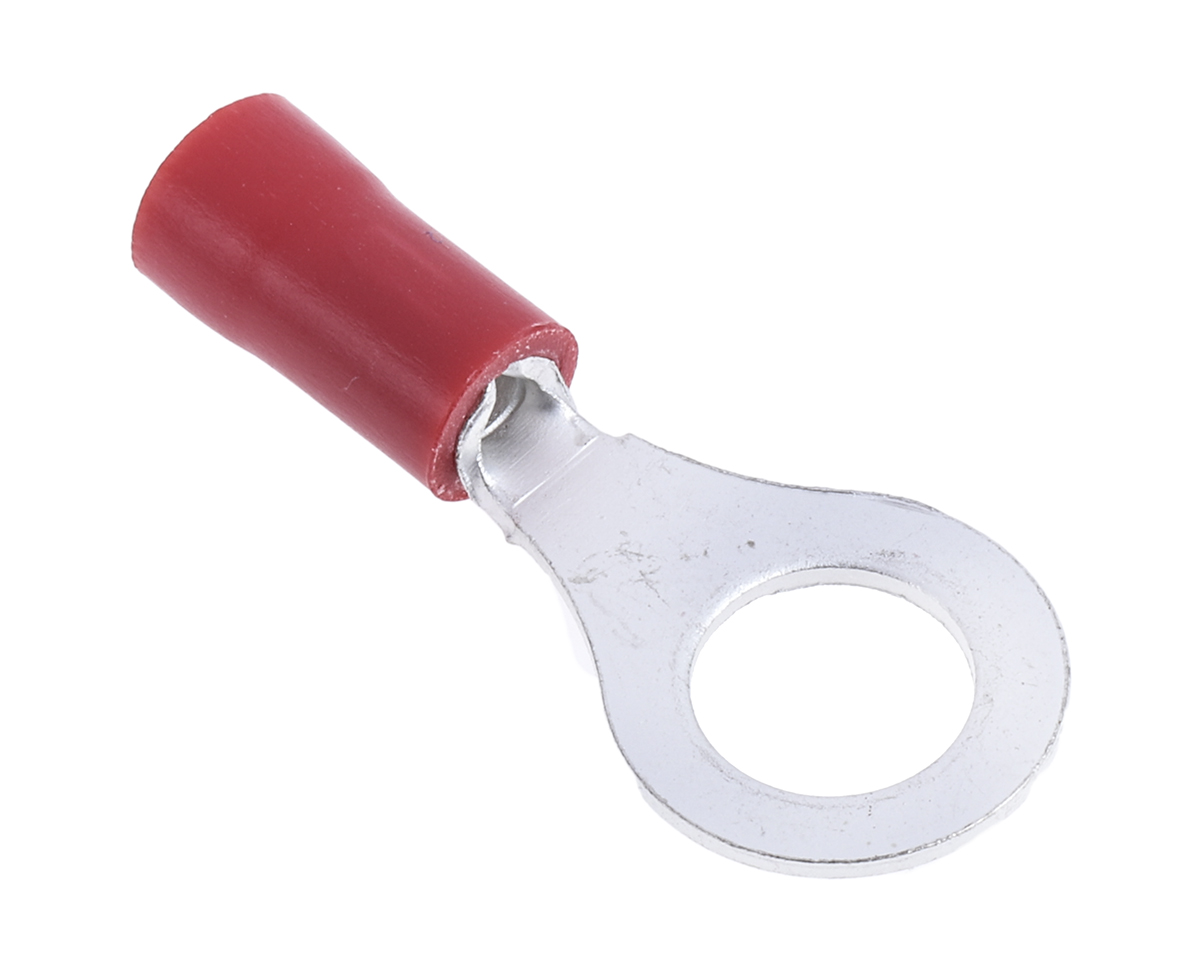

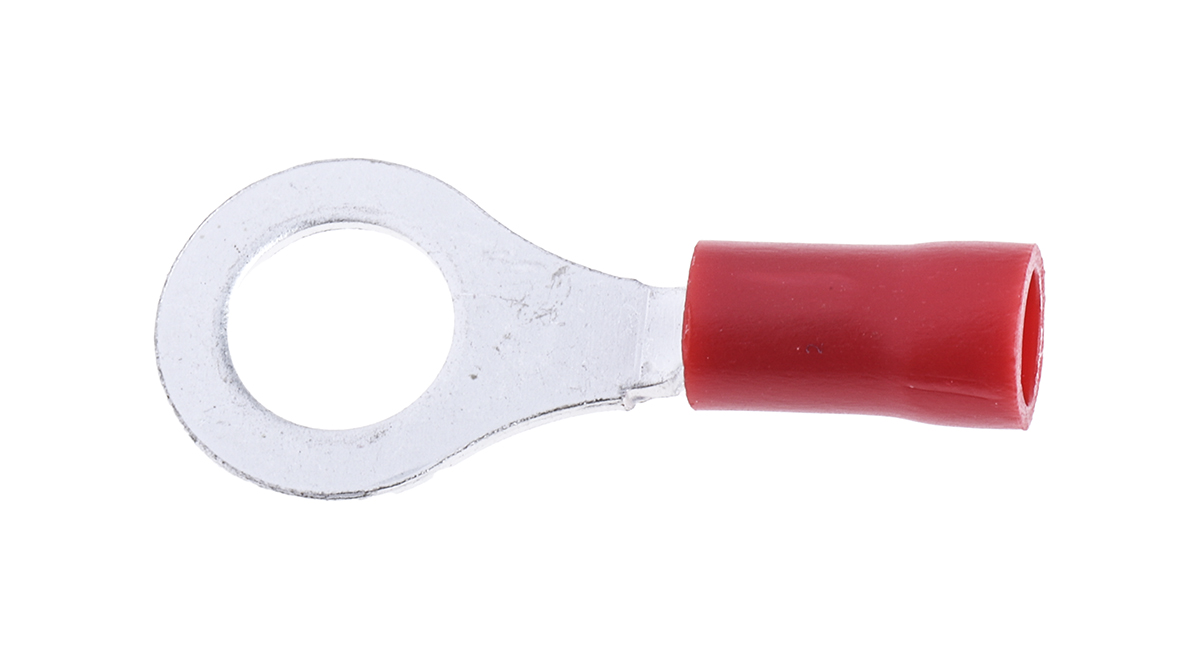

RS Pro Insulated Tin Plated Crimp Ring Terminal, M6 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

  • Enrgtech Part No: ET14045510
  • |
  • Manufacturer Part No:

    534-193

  • |
  • Manufacturer: RS Pro
534-193 RS Pro Insulated Tin Plated Crimp Ring Terminal, M6 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red
534-193
534-193
RS Pro

Product Information

Maximum Wire Size mm²:
1.5mm²
Colour:
Red
Minimum Wire Size AWG:
22AWG
Thickness:
0.8mm
Stud Size:
M6
Outer Ring Diameter:
11mm
Inner Ring Diameter:
6.35mm
Insulation Material:
PVC
Contact Plating:
Tin
Overall Length:
26.7mm
Insulation:
Insulated
Maximum Wire Size AWG:
16AWG
Minimum Wire Size mm²:
0.5mm²
Maximum Operating Temperature:
+75°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Insulated Tin Plated Crimp Ring Terminal M6 Stud Size 0.5mm² to 1.5mm² 22AWG to 16AWG Red manufactured by RS Pro. The manufacturer part number is 534-193. The wire has a maximum size of 1.5mm². It has a decent red colour. While the minimum wire size AWG includes 22awg. It is 0.8mm thick. It has a standard m6 size stud . In addition, its outlet ring diameter is about 11mm . Moreover, the inner ring is about 6.35mm in diameter . It has a robust pvc insulation material. The high-quality tin is used as contact plating material. It has an overall length of 26.7mm. Insulation Option: insulated. Its maximum wires size includes 16awg. On the other hand, the wire has 0.5mm² of minimum size. It has a maximum operating temperature of +75°c. The product is made from sturdy copper materials.

pdf icon
RS PRO Datasheet(Technical Reference)
