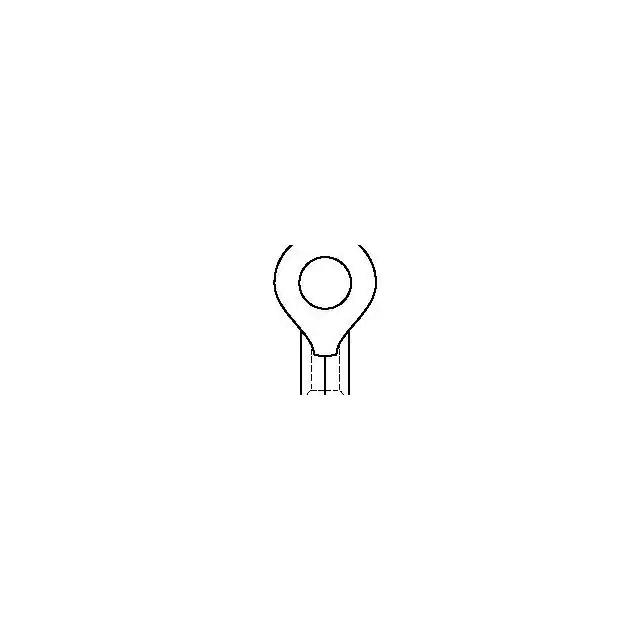

Molex 19069 Series Uninsulated Tin Plated Crimp Ring Terminal, M8 (5/16) Stud Size, 1mm² to 2.5mm², 16AWG to 14AWG

19069-0096 Molex 19069 Series Uninsulated Tin Plated Crimp Ring Terminal, M8 (5/16) Stud Size, 1mm² to 2.5mm², 16AWG to 14AWG
19069-0096
Molex

Product Information

Minimum Wire Size mm²:
1mm²
Maximum Wire Size mm²:
2.5mm²
Minimum Wire Size AWG:
16AWG
Thickness:
0.79mm
Stud Size:
M8 (5/16)
Inner Ring Diameter:
8.33mm
Outer Ring Diameter:
13.82mm
Contact Plating:
Tin
Overall Length:
25.65mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
14AWG
Contact Material:
Copper
Series Number:
0096
HTSUS:
8536.90.4000
Package:
Box
Series:
*
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 19069 Series Uninsulated Tin Plated Crimp Ring Terminal M8 (5/16) Stud Size 1mm² to 2.5mm² 16AWG to 14AWG manufactured by Molex. The manufacturer part number is 19069-0096. On the other hand, the wire has 1mm² of minimum size. The wire has a maximum size of 2.5mm². While the minimum wire size AWG includes 16awg. It is 0.79mm thick. It has a standard m8 (5/16) size stud . Moreover, the inner ring is about 8.33mm in diameter . In addition, its outlet ring diameter is about 13.82mm . The high-quality tin is used as contact plating material. It has an overall length of 25.65mm. Insulation Option: uninsulated. Its maximum wires size includes 14awg. The product is made from sturdy copper materials. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.90.4000. It is shipped in box package . The product is rohs3 compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.
