Minimum Operating Band 2 Frequency:
4.9GHz
Dimensions:
8.1 x 8.1 x 0.75mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
2.7 V
Maximum Operating Band 1 Frequency:
2400 MHz, 4900 MHz
Height:
0.75mm
Modulation Technique:
OFDM, QPSK
Width:
8.1mm
Length:
8.1mm
Maximum Operating Band 2 Frequency:
5.875GHz
Package Type:
TQFN
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Number of Operating Bands:
2
Minimum Operating Band 1 Frequency:
2400 MHz, 2500 MHz, 5875 MHz
Technology:
IEEE 802.11b/g, IEEE 802.11n
Pin Count:
56

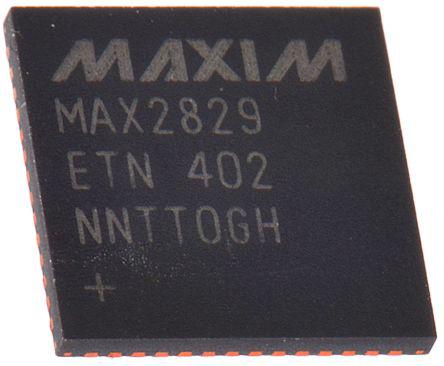

This is RF Transceiver Dual Band 2.7 → 3.6 V 56-Pin TQFN manufactured by Maxim. The manufacturer part number is MAX2829ETN+. The product has 4.9ghz of minimum operating band 2 frequency . The given dimensions of the product include 8.1 x 8.1 x 0.75mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. While its minimum operating supply voltage is 2.7 v. It has a maximum 2400 mhz, 4900 mhz operating band 1 frequency . In addition, the height is 0.75mm. It is created with ofdm, qpsk modulation technique . Furthermore, the product is 8.1mm wide. Its accurate length is 8.1mm. It has a maximum operating of 5.875ghz band 2 frequency . The package is a sort of tqfn. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has 2 operating bands . Moreover, it has a minimum 2400 mhz, 2500 mhz, 5875 mhz operating band 1 frequency . This product use ieee 802.11b/g, ieee 802.11n technology. It contains 56 pins.
