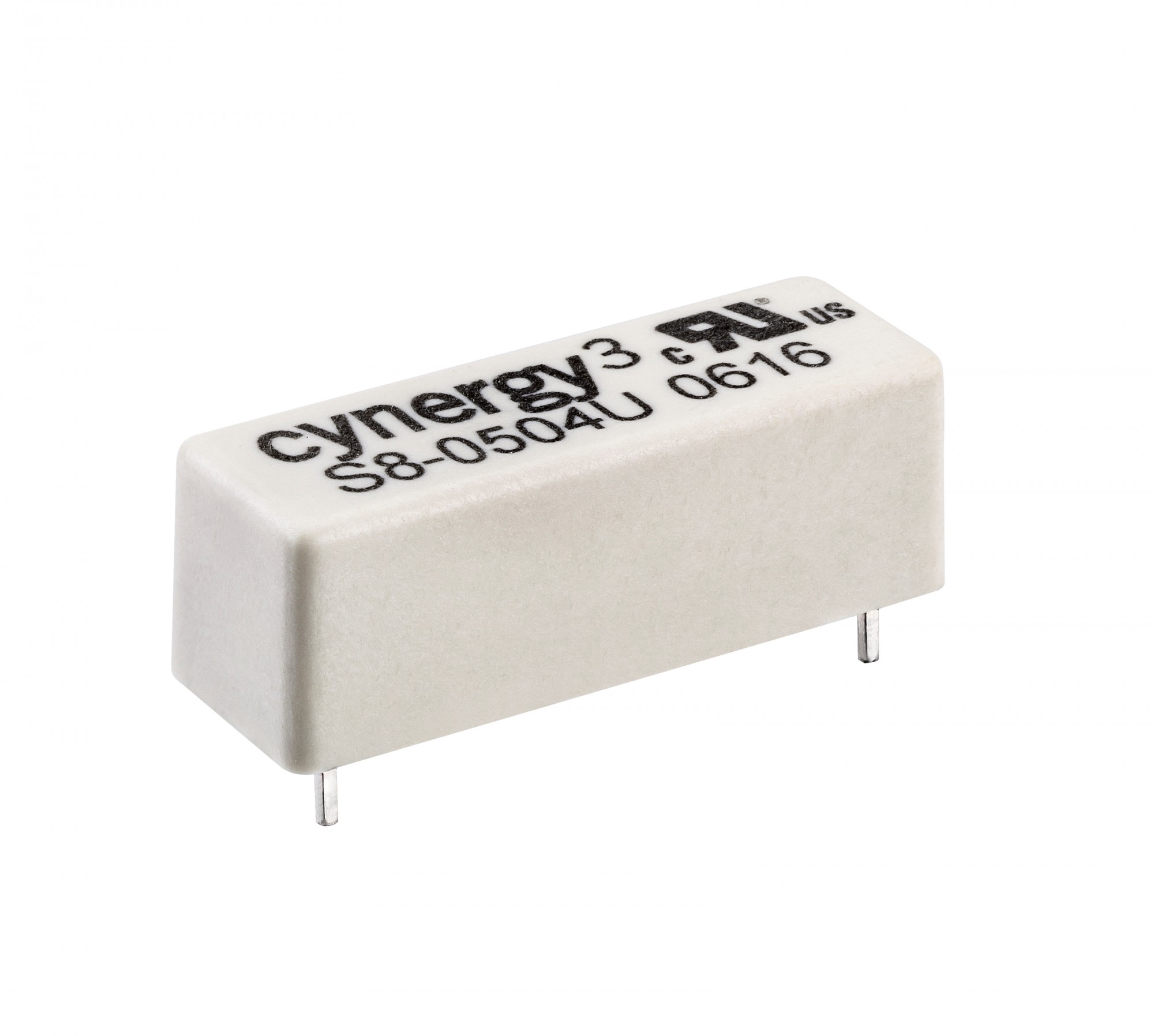

Sensata/Cynergy 3 PCB Mount Reed Relay, 24V dc Coil, SPST, 1000V Max, 1 A Max, 1550Ω
Product Information
Contact Resistance:
150 mΩ
Dimensions:
30 x 10 x 12mm
Coil Voltage:
24V dc
Coil Resistance:
1550Ω
Life:
10000000 (100 W) Cycles, 1000000000 (Dry) Cycles
Standards Met:
UL Approved
Maximum Switching Voltage DC:
1000V
Maximum Switching Power DC:
100 W
Isolation Coil To Contact:
7kV
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPST
Depth:
10mm
Relay Switching Classification:
General Purpose Relay
Special Features:
Space Saving
Mounting Type:
PCB Mount
Operating Time Including Bounce:
1ms
Length:
30mm
Height:
12mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
1000V
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Contact Material:
Rhodium
Checking for live stock
FAQs
Yes. You can also search S8-2405VU/RS on website for other similar products.
We accept all major payment methods for all products including ET24733043. Please check your shopping cart at the time of order.
You can order Sensata/Cynergy 3 brand products with S8-2405VU/RS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Reed Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sensata/Cynergy 3 PCB Mount Reed Relay, 24V dc Coil, SPST, 1000V Max, 1 A Max, 1550Ω. You can also check on our website or by contacting our customer support team for further order details on Sensata/Cynergy 3 PCB Mount Reed Relay, 24V dc Coil, SPST, 1000V Max, 1 A Max, 1550Ω.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24733043 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sensata/Cynergy 3" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24733043.
Yes. We ship S8-2405VU/RS Internationally to many countries around the world.
This is PCB Mount Reed Relay 24V dc Coil SPST 1000V Max 1 A Max 1550Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is S8-2405VU/RS. It features a 150 mω contact resistance. The given dimensions of the product include 30 x 10 x 12mm. The coil voltage of the product is 24v dc. It holds up to 1550ω coil resistance. It is capable of doing 10000000 (100 w) cycles, 1000000000 (dry) cycles in a lifetime . The product complies with all safety standards, such as ul approved. While it carries 1000v of maximum DC switching voltage. It bears a maximum 100 w of DC switching power. The product has 7kv isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 10mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as space saving. The product is available in pcb mount configuration. Moreover, the product offers a 1ms operating time including bounce . Its accurate length is 30mm. In addition, the height is 12mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 1000v. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy rhodium materials.
