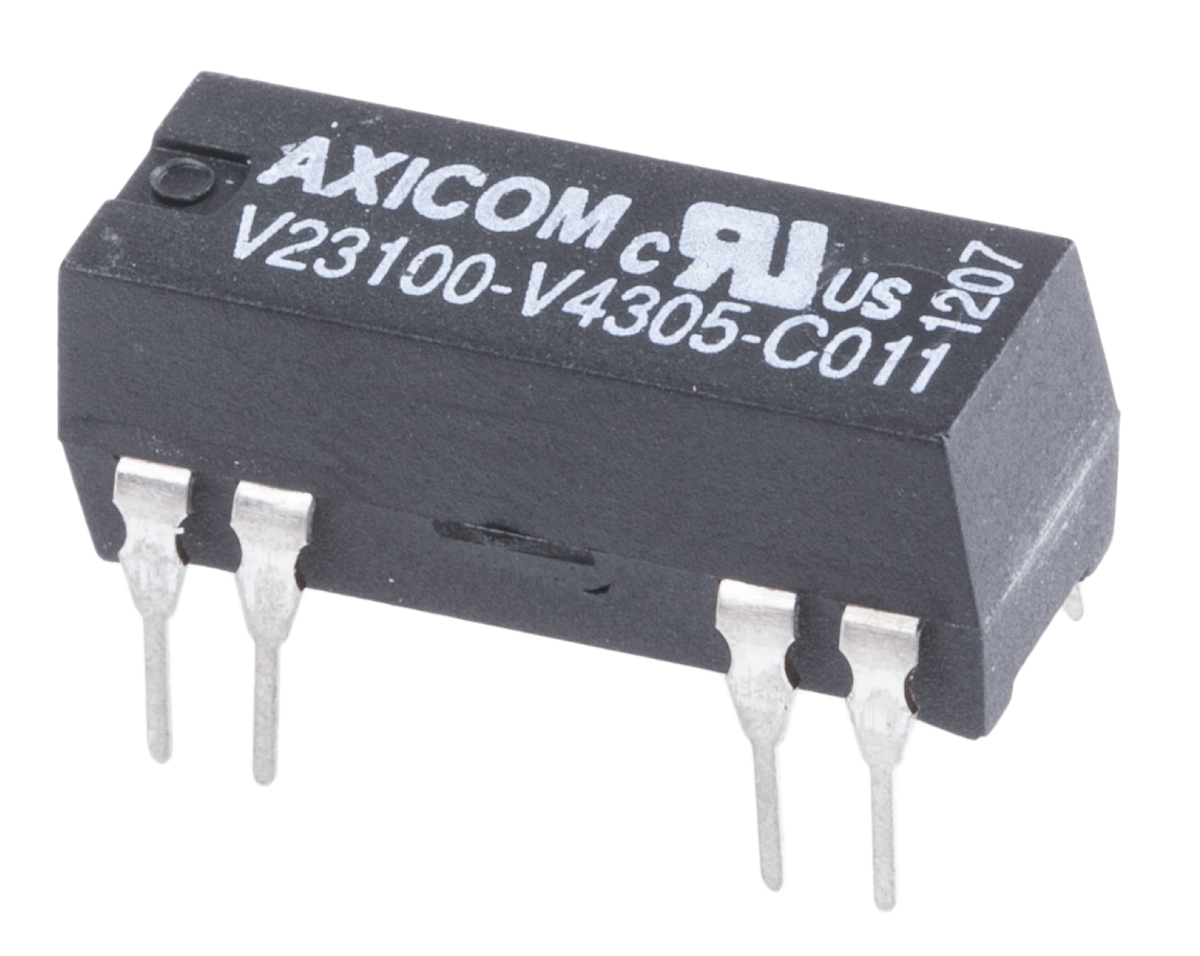

SPDT Reed Relay, 5V dc
Product Information
Contact Resistance:
150 mΩ
Dimensions:
19.3 x 7 x 7.5mm
Coil Voltage:
5V dc
Coil Resistance:
200Ω
Life:
5000000 (Electrical)Cycles
Coil Power:
50mW
Maximum Switching Voltage DC:
175V dc
Maximum Switching Power DC:
3 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPDT
Depth:
7mm
Special Features:
High Vibration and Shock Resistance, Highly Reliable Switching
Mounting Type:
PCB Mount
Operating Time Including Bounce:
1.1ms
Length:
19.3mm
Height:
7.5mm
Maximum Switching Voltage AC:
175V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
3VA
Contact Material:
Ruthenium
Moisture Sensitivity Level (MSL):
Vendor Undefined
HTSUS:
8536.41.0050
Package:
Tube
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2-1393763-3 on website for other similar products.
We accept all major payment methods for all products including ET13916570. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 2-1393763-3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Reed Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPDT Reed Relay, 5V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT Reed Relay, 5V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13916570 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13916570.
Yes. We ship 2-1393763-3 Internationally to many countries around the world.
This is SPDT Reed Relay 5V dc manufactured by TE Connectivity. The manufacturer part number is 2-1393763-3. It features a 150 mω contact resistance. The given dimensions of the product include 19.3 x 7 x 7.5mm. The coil voltage of the product is 5v dc. It holds up to 200ω coil resistance. It is capable of doing 5000000 (electrical)cycles in a lifetime . Robust coil power of 50mw. While it carries 175v dc of maximum DC switching voltage. It bears a maximum 3 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product has -40 → +85°c of operating temperature range. The contact is equipped with spdt configuration. The product comes in 7mm depth. The product also provides special features, such as high vibration and shock resistance, highly reliable switching. The product is available in pcb mount configuration. Moreover, the product offers a 1.1ms operating time including bounce . Its accurate length is 19.3mm. In addition, the height is 7.5mm. It has a maximum AC switching voltage of 175v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 3va. The product is made from sturdy ruthenium materials. Its typical moisture sensitivity level is vendor undefined. It is assigned with possible HTSUS value of 8536.41.0050. It is shipped in tube package . The product is rohs non-compliant. In addition, it is reach info available upon request. The product is designated with the ear99 code number.
