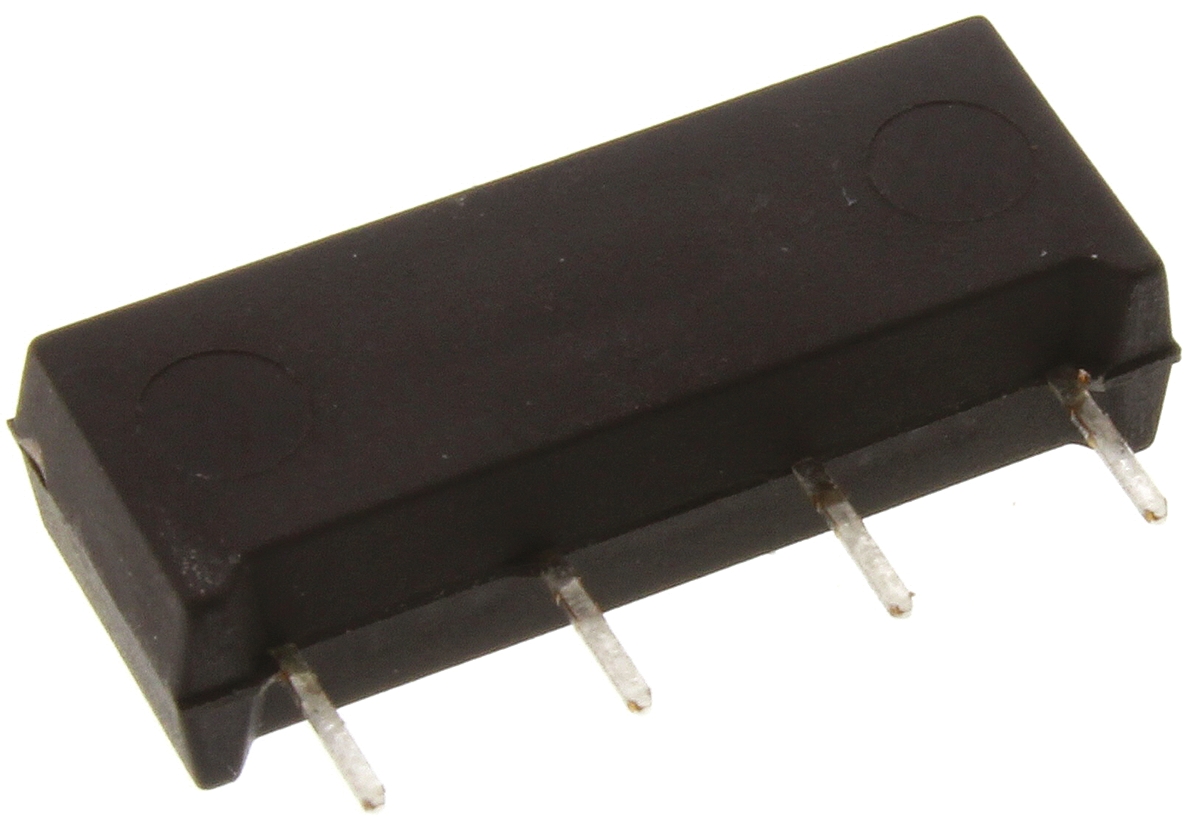

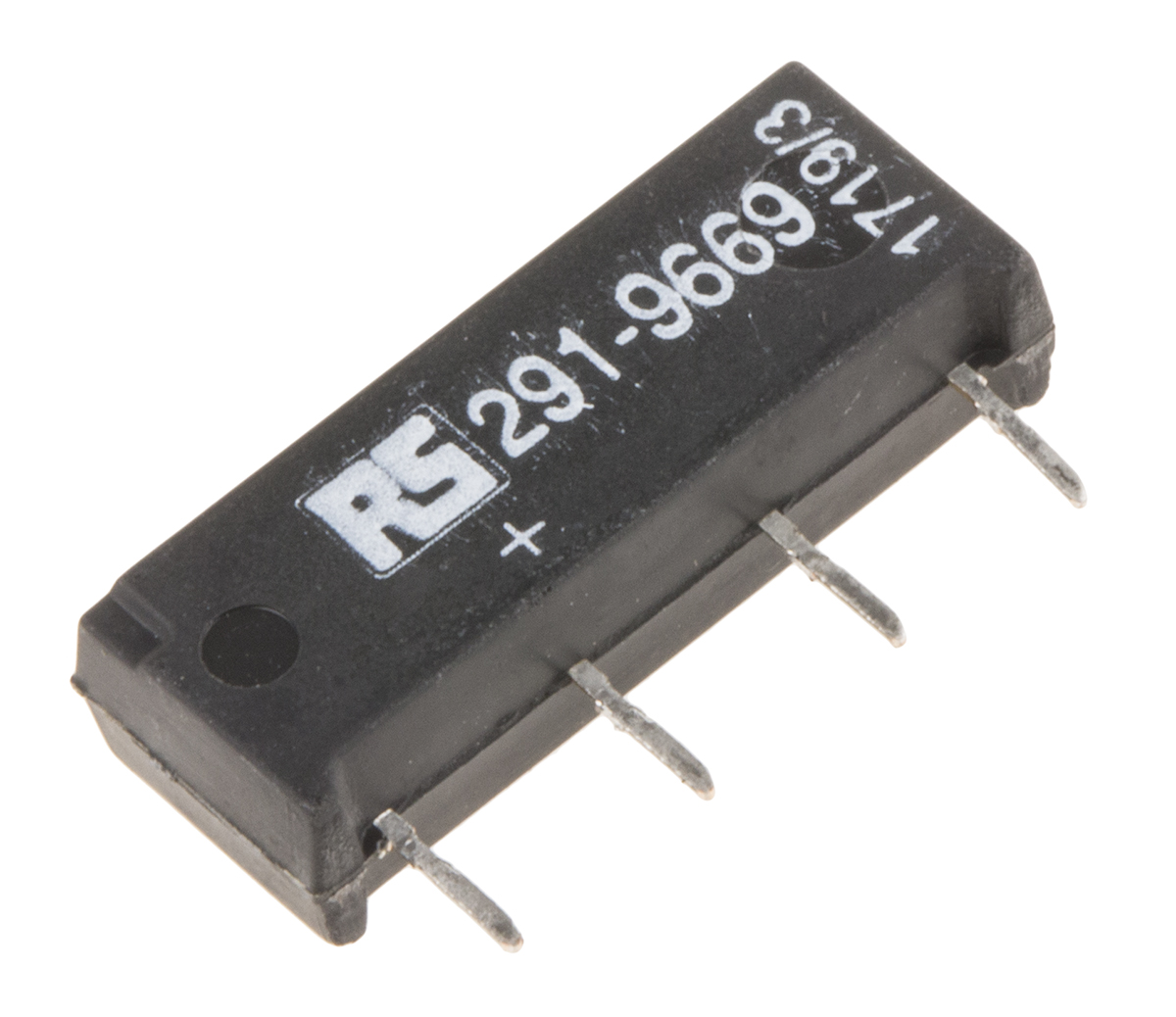

SPNO Reed Relay, 1 A, 5V dc
Product Information
Contact Resistance:
150 (Static) mΩ, 200 (Dynamic) mΩ
Dimensions:
19.8 x 5.08 x 7.8mm
Coil Voltage:
5V dc
Coil Resistance:
500Ω
Life:
5000000 (Electrical) cycles
Coil Power:
50mW
Maximum Switching Voltage DC:
200V dc
Maximum Switching Power DC:
20 W
Isolation Coil To Contact:
1.5kV dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-20 → +70°C
Contact Configuration:
SPST
Depth:
5.08mm
Mounting Type:
PCB Mount
Operating Time Including Bounce:
0.5ms
Length:
19.8mm
Height:
7.8mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
200V ac
Minimum Operating Temperature:
-20°C
Contact Material:
Rhodium
Checking for live stock
FAQs
Yes. You can also search SIL05-1A72-BV669 on website for other similar products.
We accept all major payment methods for all products including ET14069972. Please check your shopping cart at the time of order.
You can order Meder brand products with SIL05-1A72-BV669 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Reed Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPNO Reed Relay, 1 A, 5V dc. You can also check on our website or by contacting our customer support team for further order details on SPNO Reed Relay, 1 A, 5V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14069972 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Meder" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14069972.
Yes. We ship SIL05-1A72-BV669 Internationally to many countries around the world.
This is SPNO Reed Relay 1 A 5V dc manufactured by Meder. The manufacturer part number is SIL05-1A72-BV669. It features a 150 (static) mω, 200 (dynamic) mω contact resistance. The given dimensions of the product include 19.8 x 5.08 x 7.8mm. The coil voltage of the product is 5v dc. It holds up to 500ω coil resistance. It is capable of doing 5000000 (electrical) cycles in a lifetime . Robust coil power of 50mw. While it carries 200v dc of maximum DC switching voltage. It bears a maximum 20 w of DC switching power. The product has 1.5kv dc isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a through hole type. It has a maximum 1 a switching current AC . The product has -20 → +70°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 5.08mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 0.5ms operating time including bounce . Its accurate length is 19.8mm. In addition, the height is 7.8mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 200v ac. Whereas, the minimum operating temperature of the product is -20°c. The product is made from sturdy rhodium materials.
