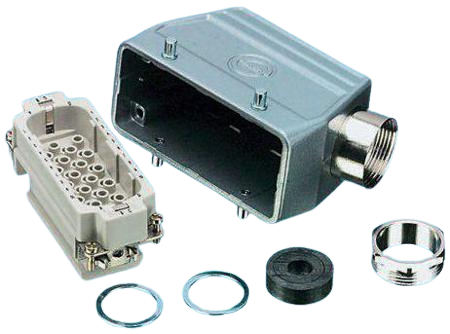

H-D Series 40 Way Male 10A Connector Kit
Product Information
Current Rating:
10A
Voltage Rating:
250 V
Gender:
Male
Body Orientation:
Side Entry
Pole Format:
40P+E
Series:
H-D
Number of Contacts:
40
Type:
Connector Set
Checking for live stock
FAQs
Yes. You can also search HD40 W S/E HOOD/PLUG on website for other similar products.
We accept all major payment methods for all products including ET16892070. Please check your shopping cart at the time of order.
You can order Epic Contact brand products with HD40 W S/E HOOD/PLUG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Heavy Duty Power Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of H-D Series 40 Way Male 10A Connector Kit. You can also check on our website or by contacting our customer support team for further order details on H-D Series 40 Way Male 10A Connector Kit.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16892070 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Epic Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16892070.
Yes. We ship HD40 W S/E HOOD/PLUG Internationally to many countries around the world.
H-D 40 and 64 Way Assembled Plugs and Sockets Crimp termination Metal Body Approvals SEV, UL, CSA Standards VDE 0110//72, 0110b, 79, VDE 0627//86 H-D & H-DD Assembled connectors are type tested to 10A 250V a.c. and include the following features: High density contact loading gives more power and control connections in smaller shell sizes Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool Coupled connectors have protection rating of IP65 Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells Dimensions (mm) Type Number of Ways A B C D Gland Plug 7//8 (see drawings) PG11 Plug 15 53 63 - - PG16 Plug 25 58 79 - - PG16 Plug 40 - - 93 61 PG21 Plug 64 - - 119.5 70 PG21 Surface Skt. 15 76 48 64 52 PG16 Surface Skt. 25 92 64 80 57 PG16 Surface Skt. 40 141 105 117 - PG21 Surface Skt. 64 167 132 143.5 - PG21 Panel Skt. 15 76 70 81 - Panel Skt. 25 92 86 96 - Panel Skt. 40 141 103 113 - Panel Skt. 64 167 130 140 - Ways: 7//8 way, Plastic Body 15, 25, 40, 64 Metal Body Operating Current 10A max Working Voltage 250V a.c. Test Voltage 4kV eff Contact Resistance ≤2mOhm Temperature Range -40°C to +125°C Environmental Rating 7 way IP65 15 and 25 way IP65 25, 40 and 64 way IP65 Warning Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.
