Manufacturer Standard Lead Time:
8 Weeks
Style:
Board to Board or Cable
Detailed Description:

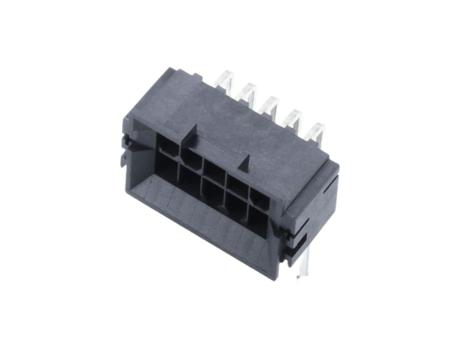

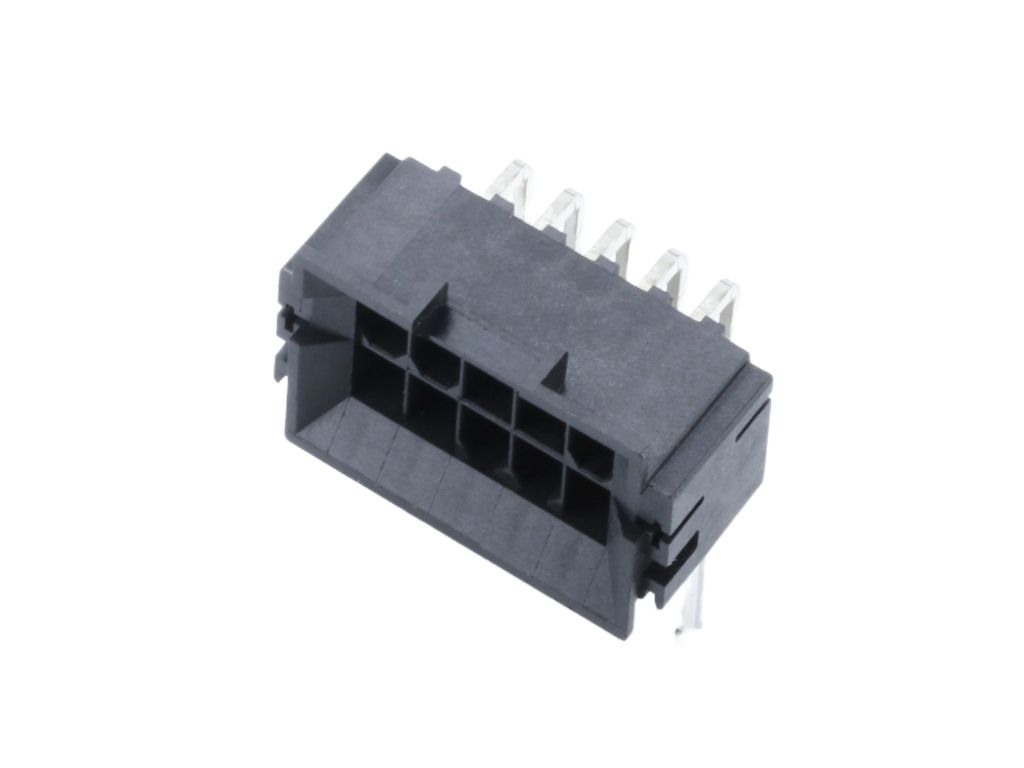

Connector Header Through Hole, Right Angle 10 position 0.165" (4.20mm)
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Contact Length - Post:
0.123" (3.12mm)
Insulation Height:
0.591" (15.00mm)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Black
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Number of Positions Loaded:
All
Fastening Type:
Latch Holder
Termination:
Solder
Pitch - Mating:
0.165" (4.20mm)
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit BMI SMC 43810
Packaging:
Tray
Contact Finish - Mating:
Tin
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material:
Brass
Connector System:
Power
Tail Pin Length:
3.12mm
Number of Contacts:
10
Orientation:
Right Angle
Housing Material:
High Temperature Thermoplastic
Shrouded/Unshrouded:
Shrouded
Series:
43810
Contact Material:
Brass
Current:
13A
Number of Rows:
2
Standards/Approvals:
CSA LR19980, UL E29179
Contact Plating:
Tin
Pitch:
4.20mm
Termination Type:
Through Hole
Product Type:
PCB Header
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Through Hole
