Molex Connector Corporation 39-30-1201

39-30-1201 Molex Connector Corporation
Molex Connector Corporation

Product Information

Manufacturer Standard Lead Time:
6 Weeks
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Detailed Description:

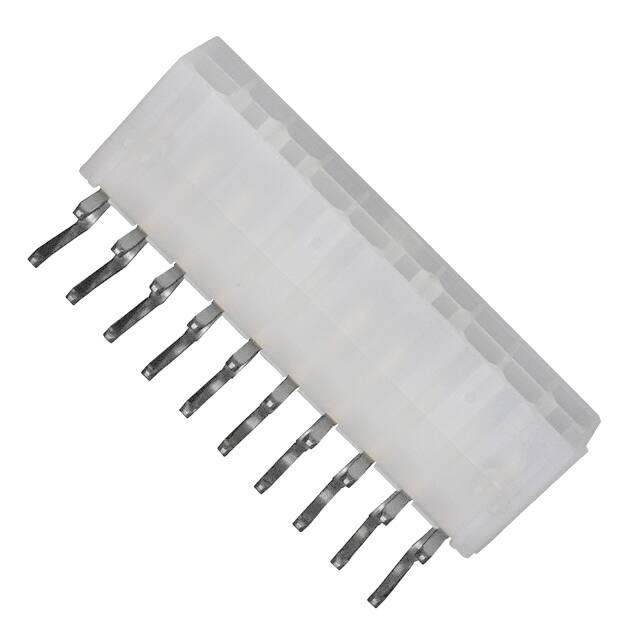

20 Positions Header Connector 0.165" (4.20mm) Through Hole, Right Angle Gold
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
20
Contact Length - Post:
0.142" (3.60mm)
Insulation Height:
0.378" (9.60mm)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
2
Standard Package:
1
Contact Shape:
Square
Manufacturer:
Molex Connector Corporation
Insulation Color:
Natural
Material Flammability Rating:
UL94 V-2
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Locking Ramp
Termination:
Solder
Pitch - Mating:
0.165" (4.20mm)
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit® Jr™ 5569
Packaging:
Bulk
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Other Names:
0039301201 39-30-1201-P 39301201 5569-20A2G WM1372
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Brass
RoHs Compliant
Checking for live stock

This is manufactured by Molex Connector Corporation. The manufacturer part number is 39-30-1201. It has typical 6 weeks of manufacturer standard lead time. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It features 20 positions header connector 0.165" (4.20mm) through hole, right angle gold. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 20. 0.142" (3.60mm) is the given possible contact length (post) values. 0.378" (9.60mm) of insulation height. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, industrial, telecommunications. It comes in 2 of rows. It is available in the standard package of 1. It has a typical square shape. The molex connector corporation's product offers user-desired applications. In addition, natural is the insulation color of the product. It carries ul94 v-2 of material flammability rating. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product mini-fit® jr™ 5569, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. Alternative Names include 0039301201 39-30-1201-p 39301201 5569-20a2g wm1372. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy brass materials.
