Functions:
Battery Backup, Calendar, NV RAM
User RAM:
56B
Mounting Type:
Surface Mount
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
3 V
Date Format:
DW:DM:M:Y
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Bus Type:
Serial-I2C
Time Format:
HH:MM:SS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Dimensions:
5 x 4 x 1.5mm
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Timekeeping (Max):
125µA ~ 200µA @ 3.63V ~ 5.5V
Operating Temperature:
-40°C ~ 85°C
Memory Size:
56B

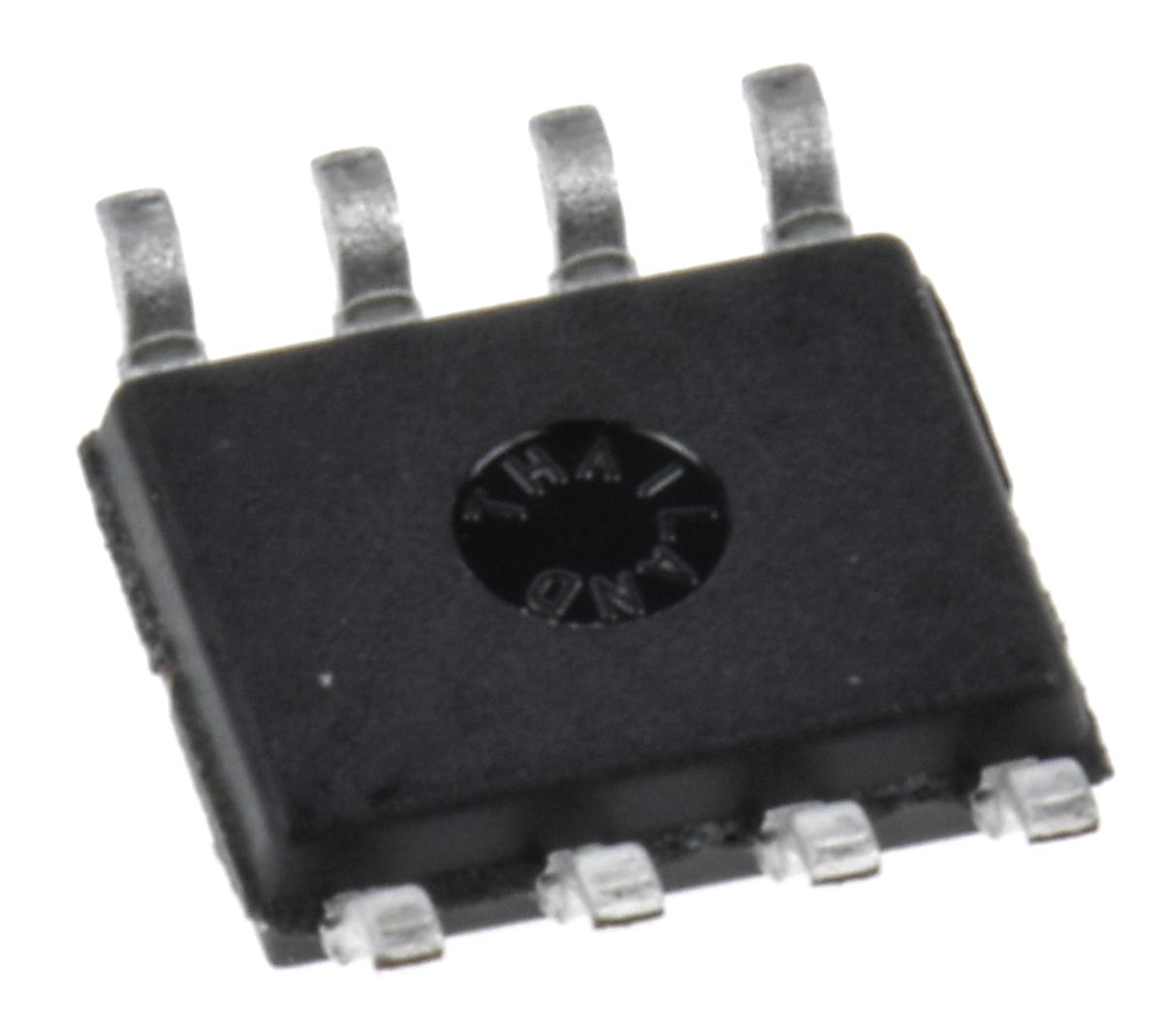

Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (12/24 hr)
Interface:
I²C, 2-Wire Serial
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Battery:
1.3V ~ 3.7V
standardLeadTime:
32 Weeks
Features:
Leap Year, NVSRAM, Square Wave Output
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Voltage - Supply:
3V ~ 5.5V
Base Product Number:
DS1338
ECCN:
EAR99
