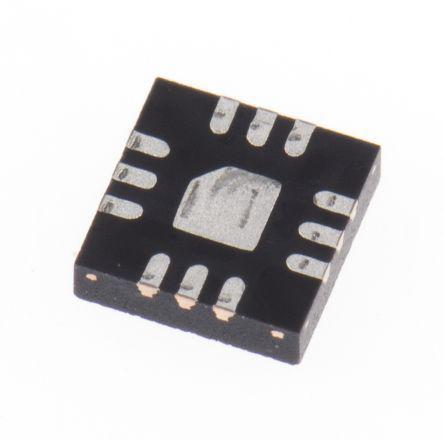

Maxim MAX17292ETCC+, PWM Voltage Mode Controller, 1 A, 2400 kHz 12-Pin, TQFN

MAX17292ETCC- Maxim MAX17292ETCC+, PWM Voltage Mode Controller, 1 A, 2400 kHz 12-Pin, TQFN
Maxim

Product Information

Output Current:
1 A
Dimensions:
3 x 3 x 0.75mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Control Method:
Current
Synchronous Pin:
Yes
Height:
0.75mm
Typical Operating Supply Voltage:
4.5 → 36 V
Width:
3mm
Length:
3mm
Output Voltage:
5.45 V
Package Type:
TQFN
Minimum Operating Temperature:
-40 °C
Maximum Switching Frequency:
2400 kHz
Maximum Operating Temperature:
+85 °C
Pin Count:
12
Topology:
Boost
RoHs Compliant
Checking for live stock

This is PWM Voltage Mode Controller 1 A 2400 kHz 12-Pin TQFN manufactured by Maxim. The manufacturer part number is MAX17292ETCC+. It carries 1 a output current. The given dimensions of the product include 3 x 3 x 0.75mm. The product is available in surface mount configuration. It has 1 PWM output(s) . It features current controlling mechanism. It has a synchronous pin yes . In addition, the height is 0.75mm. It has 4.5 → 36 v of typical operating supply voltage. Furthermore, the product is 3mm wide. Its accurate length is 3mm. Features a 5.45 v output voltage. The package is a sort of tqfn. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum 2400 khz switching frequency. It has a maximum operating temperature of +85 °c. It contains 12 pins. Topology includes boost.

pdf icon
Datasheet(Technical Reference)
pdf icon
1682887_DataSheet 1(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
