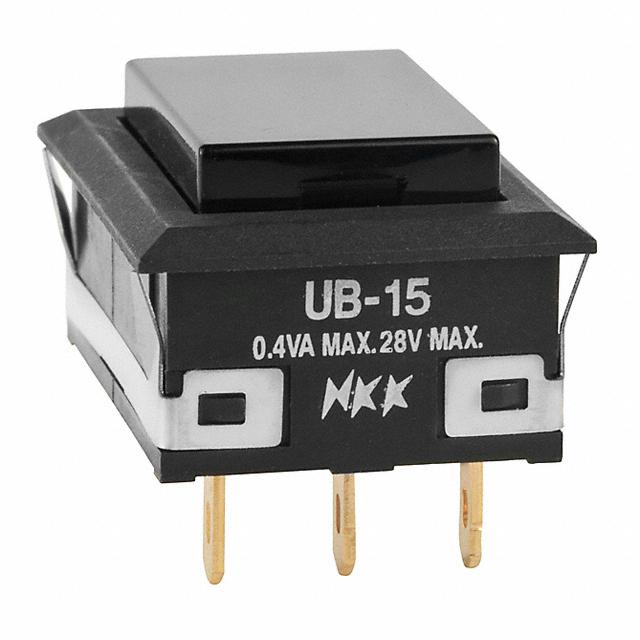

NKK Switches UB15NKG01N-A

UB15NKG01N-A NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
200,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
28 V
Operating Temperature:
-20°C ~ 70°C
Panel Cutout Dimensions:
Rectangular - 22.40mm x 16.20mm
Mechanical Life:
1,000,000 Cycles
Type:
Standard
title:
UB15NKG01N-A
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
UB15NKG01N-A Models
edacadModelUrl:
/en/models/1057821
Illumination Type, Color:
-
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
11 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Plunger Seal
Mounting Type:
Panel Mount, Snap-In
Series:
UB
Packaging:
Tray
Color - Actuator/Cap:
Black
Actuator Type:
Rectangular, Button
Illumination Voltage (Nominal):
-
Base Product Number:
UB15NKG
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is UB15NKG01N-A. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 200,000 cycles. Moreover, it has solder lug terminal style. 28 v of DC voltage rating. The product has -20°c ~ 70°c operating temperature range. It also has a rectangular - 22.40mm x 16.20mm dimensional features. The product also provide mechanical stability with 1,000,000 cycles. It comes in standard configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 11 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include plunger seal. The product is available in panel mount, snap-in configuration. The product ub, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It is made from black. The product carries rectangular, button actuator. Moreover, it corresponds to ub15nkg, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
UB, UB2 Epoxy Seal Material 18/Jun/2010(PCN Design/Specification)
pdf icon
LB.UB,UB2 Series 31/Mar/2016(PCN Design/Specification)
pdf icon
UB Series Low Profile Pushbutton(Datasheets)
