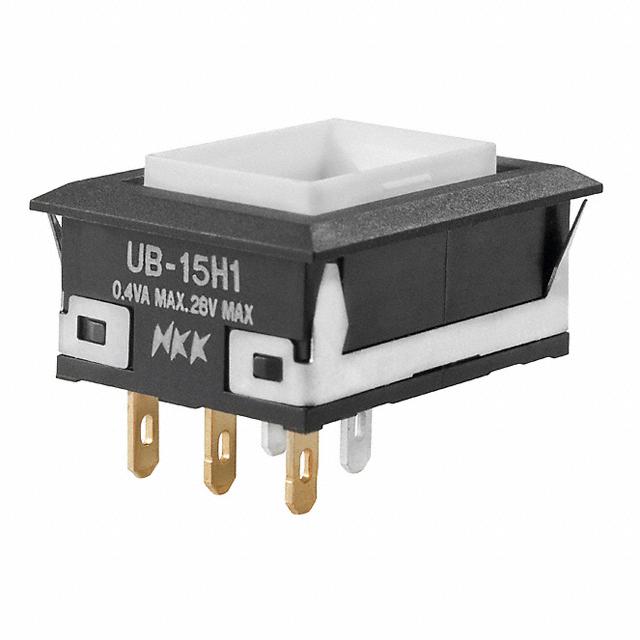

NKK Switches UB15NKG015D

UB15NKG015D NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder Lug
Voltage Rating - DC:
28 V
Operating Temperature:
-25°C ~ 50°C
Panel Cutout Dimensions:
Rectangular - 22.40mm x 16.20mm
Type:
Standard, Illuminated
Color - Actuator/Cap:
-
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Amber
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
22 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Plunger and Panel Seal
Mounting Type:
Panel Mount, Snap-In
Series:
UB
Packaging:
Bulk
Actuator Type:
Plunger for Cap
Illumination Voltage (Nominal):
2 VDC
Base Product Number:
UB15NKG
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is UB15NKG015D. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has solder lug terminal style. 28 v of DC voltage rating. The product has -25°c ~ 50°c operating temperature range. It also has a rectangular - 22.40mm x 16.20mm dimensional features. It comes in standard, illuminated configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, amber illumination. It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 22 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include plunger and panel seal. The product is available in panel mount, snap-in configuration. The product ub, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries plunger for cap actuator. The nominal illumination voltage of the product is 2 vdc. Moreover, it corresponds to ub15nkg, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
LB.UB,UB2 Series 31/Mar/2016(PCN Design/Specification)
pdf icon
Epoxy Seal color chg 24/JUN/2022(PCN Design/Specification)
pdf icon
UB Series(Datasheets)
