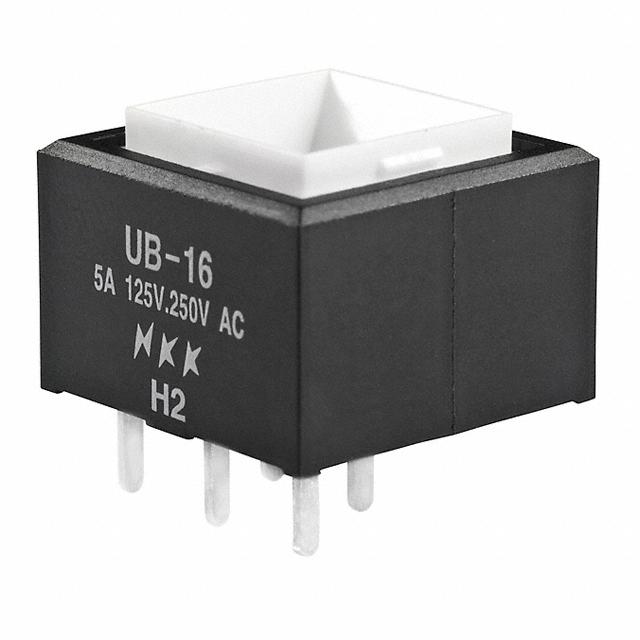

NKK Switches UB16SKW036F

UB16SKW036F NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
30 V
Operating Temperature:
-25°C ~ 50°C
Panel Cutout Dimensions:
-
Mechanical Life:
200,000 Cycles
Type:
Standard, Illuminated
Color - Actuator/Cap:
-
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Green
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
11 Weeks
Current Rating (Amps):
5A (AC/DC)
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
UB
Packaging:
Bulk
Actuator Type:
Plunger for Cap
Illumination Voltage (Nominal):
3.2 VDC
Base Product Number:
UB16SKW
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is UB16SKW036F. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has pc pin terminal style. 30 v of DC voltage rating. The product has -25°c ~ 50°c operating temperature range. The product also provide mechanical stability with 200,000 cycles. It comes in standard, illuminated configuration. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, green illumination. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 11 weeks standard lead time. Additionally, the product's output is 5a (ac/dc). The splendid features of the product include process sealed. The product is available in through hole configuration. The product ub, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries plunger for cap actuator. The nominal illumination voltage of the product is 3.2 vdc. Moreover, it corresponds to ub16skw, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
LB.UB,UB2 Series 31/Mar/2016(PCN Design/Specification)
pdf icon
Epoxy Seal color chg 24/JUN/2022(PCN Design/Specification)
pdf icon
UB Series(Datasheets)
