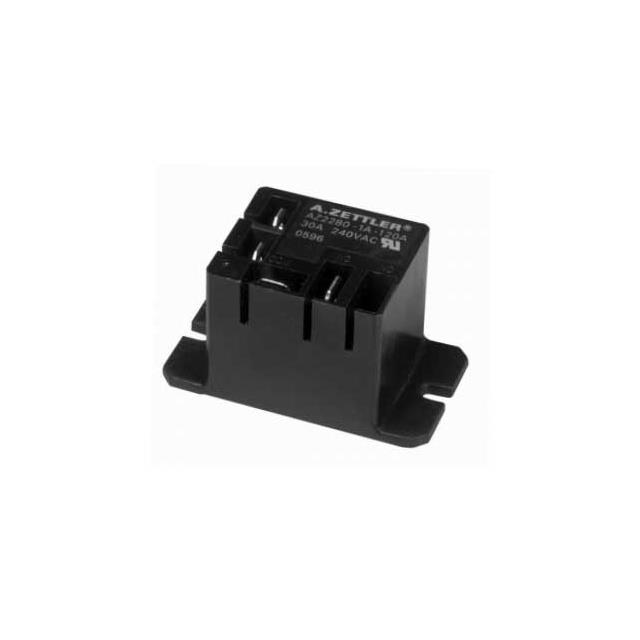

American Zettler AZ2280-1C-208AEF
Product Information
Must Release Voltage:
41.6 VAC
HTSUS:
8536.49.0075
Coil Voltage:
208VAC
Termination Style:
Quick Connect - 0.187"/0.250"
Operating Temperature:
-55°C ~ 60°C
Approval Agency:
CUR, UL, VDE
Coil Resistance:
11 kOhms
Coil Current:
18.9 mA
Coil Type:
Non Latching
Switching Voltage:
277VAC, 28VDC - Max
Load - Max Switching:
11080VA, 840W
Seal Rating:
Sealed - Fully
Must Operate Voltage:
176.8 VAC
Relay Type:
General Purpose
Package:
Tray
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Qualification:
-
standardLeadTime:
16 Weeks
Contact Rating (Current):
20 A
Features:
-
Mounting Type:
Chassis Mount
Grade:
-
Series:
AZ2280
Release Time:
10 ms
Coil Insulation:
Class F
Contact Material:
Silver Cadmium Oxide (AgCdO)
Base Product Number:
AZ2280-1C
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AZ2280-1C-208AEF on website for other similar products.
We accept all major payment methods for all products including ET21206553. Please check your shopping cart at the time of order.
You can order American Zettler brand products with AZ2280-1C-208AEF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of American Zettler AZ2280-1C-208AEF. You can also check on our website or by contacting our customer support team for further order details on American Zettler AZ2280-1C-208AEF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21206553 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "American Zettler" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21206553.
Yes. We ship AZ2280-1C-208AEF Internationally to many countries around the world.
This is manufactured by American Zettler. The manufacturer part number is AZ2280-1C-208AEF. While the must release voltage is a 41.6 vac. It is assigned with possible HTSUS value of 8536.49.0075. The coil voltage of the product is 208vac. Moreover, it has quick connect - 0.187"/0.250" terminal style. The product has -55°c ~ 60°c operating temperature range. It is approved by cur, ul, vde. It holds up to 11 kohms coil resistance. It has a coil current of 18.9 ma. The coil is a non latching type. The product's switching voltage is 277vac, 28vdc - max. Seal rating options: sealed - fully. On the other hand, 176.8 vac is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tray package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. It has a long 16 weeks standard lead time. It has a contact current rating of 20 a. The product is available in chassis mount configuration. The product az2280, is a highly preferred choice for users. While 10 ms is its release time. The coil is a class f insulation. The product is made from sturdy silver cadmium oxide (agcdo) materials. Moreover, it corresponds to az2280-1c, a base product number of the product. The product is designated with the ear99 code number.
