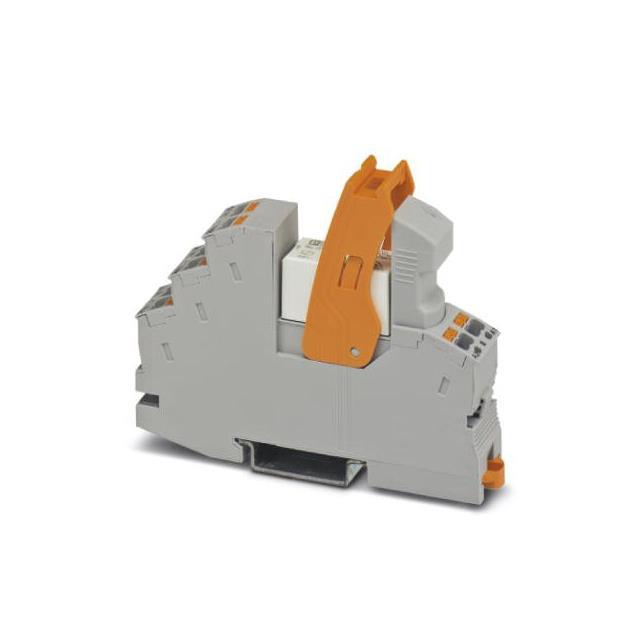

Relay Module RIF-1-RPT-LDP-24DC/1ICT
Product Information
Dimensions:
16 x 75 x 96mm
Coil Voltage:
24V dc
For Use With:
Strong capacitive loads
Turn On Time:
8ms
Turn Off Time:
10ms
Input Current:
18mA
Life:
3 x 10^7 Cycles
Switching Voltage:
12 → 250V ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Plug In
Relay Type:
Solid State Relay
Operating Temperature Range:
-40 → +70°C
Contact Configuration:
SPST
Depth:
75mm
Relay Switching Classification:
Solid State Relay
Special Features:
IP20 Relay Base, LED Operation Indicator
Mounting Type:
DIN Rail
Series:
RIF-1-RPT-LDP-24DC/1ICT
Input Voltage Range:
12 → 250V ac/dc
Accessory Type:
Relay Module
Length:
16mm
Height:
96mm
Minimum Operating Temperature:
-40°C
Minimum Input Voltage:
24V dc
Maximum Input Voltage:
250V ac/dc
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
1440 Ohms
Coil Current:
18 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Box
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
RIF
Release Time:
10 ms
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
10786
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1078686 on website for other similar products.
We accept all major payment methods for all products including ET18258498. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1078686 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Relay Module RIF-1-RPT-LDP-24DC/1ICT. You can also check on our website or by contacting our customer support team for further order details on Relay Module RIF-1-RPT-LDP-24DC/1ICT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18258498 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18258498.
Yes. We ship 1078686 Internationally to many countries around the world.
This is Relay Module RIF-1-RPT-LDP-24DC/1ICT manufactured by Phoenix Contact. The manufacturer part number is 1078686. The given dimensions of the product include 16 x 75 x 96mm. The coil voltage of the product is 24v dc. The product is highly suitable for strong capacitive loads. It has a 8ms turn On time. The given turn off time is 10ms. It has about 18ma input current . It is capable of doing 3 x 10^7 cycles in a lifetime . The product's switching voltage is 12 → 250v ac/dc. It has a maximum operating temperature of +70°c. The terminal is a plug in type. This is basically a solid state relay. The product has -40 → +70°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 75mm depth. It has a solid state relay switching relay configuration . The product also provides special features, such as ip20 relay base, led operation indicator. The product is available in din rail configuration. The product rif-1-rpt-ldp-24dc/1ict, is a highly preferred choice for users. It has 12 → 250v ac/dc of input voltage range. It is a type of relay module accessory. Its accurate length is 16mm. In addition, the height is 96mm. Whereas, the minimum operating temperature of the product is -40°c. The product has 24v dc of minimum input voltage. 250v ac/dc is the maximum voltage of the bespoke product. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has spring terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 70°c operating temperature range. It holds up to 1440 ohms coil resistance. It has a coil current of 18 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in box package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 8 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, socket included. The product rif, is a highly preferred choice for users. While 10 ms is its release time. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to 10786, a base product number of the product. The product is designated with the ear99 code number.
