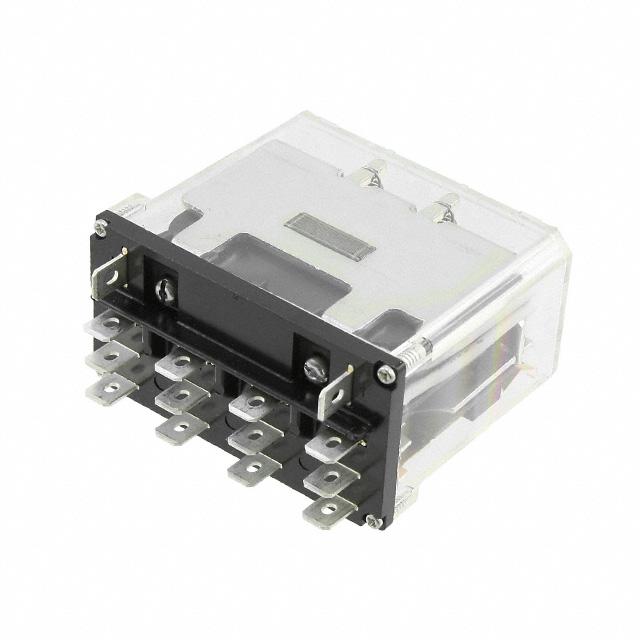

Panasonic Electric Works HG4-AC115V-F

HG4-AC115V-F Panasonic Electric Works
Panasonic Electric Works

Product Information

Must Release Voltage:
34.5 VAC
HTSUS:
8536.49.0075
Coil Voltage:
115VAC
Termination Style:
Plug In, Quick Connect - 0.250" (6.3mm)
REACH Status:
REACH Unaffected
Operating Temperature:
-50°C ~ 40°C
Approval Agency:
CSA, UR
Coil Current:
66.1 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC - Nom
Seal Rating:
-
Must Operate Voltage:
92 VAC
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
4PDT (4 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
40 ms
Qualification:
-
Contact Rating (Current):
20 A
Features:
-
Mounting Type:
Socketable
Grade:
-
Series:
HG
Release Time:
40 ms
Packaging:
Bulk
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
HG4-AC
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is HG4-AC115V-F. While the must release voltage is a 34.5 vac. It is assigned with possible HTSUS value of 8536.49.0075. The coil voltage of the product is 115vac. Moreover, it has plug in, quick connect - 0.250" (6.3mm) terminal style. In addition, it is reach unaffected. The product has -50°c ~ 40°c operating temperature range. It is approved by csa, ur. It has a coil current of 66.1 ma. The coil is a non latching type. The product's switching voltage is 250vac - nom. On the other hand, 92 vac is the given crucial/must operating voltage. This is basically a general purpose. It also has a 4pdt (4 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 40 ms. It has a contact current rating of 20 a. The product is available in socketable configuration. The product hg, is a highly preferred choice for users. While 40 ms is its release time. In addition, bulk is the available packaging type of the product. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to hg4-ac, a base product number of the product. The product is designated with the ear99 code number.
