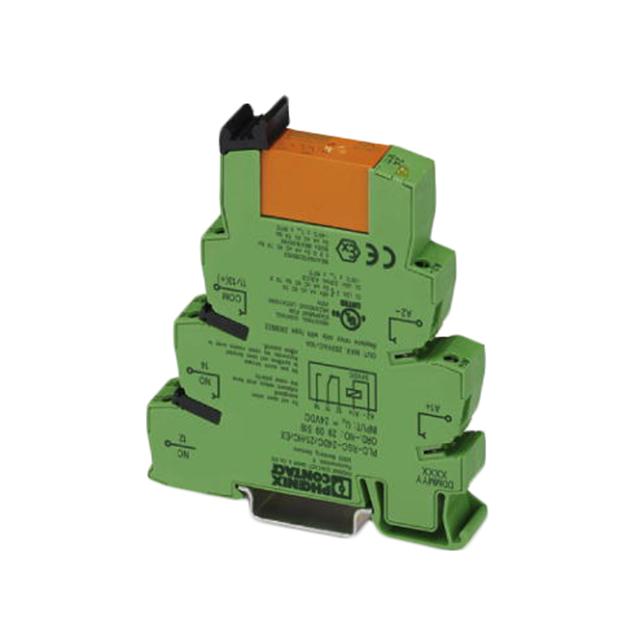

Phoenix Contact 2909519
Product Information
Dimensions:
14 x 94 x 80mm
Coil Voltage:
24V dc
Input Current:
18mA
Life:
3 x 10^7 (Mechanical) cycles
Standards Met:
CE Compliant, EN 50178, EN 60079-0, -7, -15, IEC 60664, UL Listed, USA Certified
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Operating Temperature Range:
-20 → +60 °C, -40 → +60°C
Contact Configuration:
SPDT
Depth:
94mm
Relay Switching Classification:
Interface Relay Module
Special Features:
IP20 Relay Base, Reinforced Insulation, Safe Isolation
Mounting Type:
DIN Rail
Series:
PLC-RSC-24DC/21HC/EX
Length:
14mm
Height:
80mm
Minimum Operating Temperature:
-40 °C, -20°C
Contact Material:
Silver Alloy
Number of Poles:
1
Maximum Input Voltage:
24V dc
Minimum Input Voltage:
24V dc
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 60°C
Coil Current:
18 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
10 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RSC
Release Time:
10 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29095
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2909519 on website for other similar products.
We accept all major payment methods for all products including ET14630294. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2909519 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2909519. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2909519.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14630294 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14630294.
Yes. We ship 2909519 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2909519. The given dimensions of the product include 14 x 94 x 80mm. The coil voltage of the product is 24v dc. It has about 18ma input current . It is capable of doing 3 x 10^7 (mechanical) cycles in a lifetime . The product complies with all safety standards, such as ce compliant, en 50178, en 60079-0, -7, -15, iec 60664, ul listed, usa certified. The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +60°c. The terminal is a screw type. The product has -20 → +60 °c, -40 → +60°c of operating temperature range. The contact is equipped with spdt configuration. The product comes in 94mm depth. It has a interface relay module switching relay configuration . The product also provides special features, such as ip20 relay base, reinforced insulation, safe isolation. The product is available in din rail configuration. The product plc-rsc-24dc/21hc/ex, is a highly preferred choice for users. Its accurate length is 14mm. In addition, the height is 80mm. Whereas, the minimum operating temperature of the product is -40 °c, -20°c. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. 24v dc is the maximum voltage of the bespoke product. The product has 24v dc of minimum input voltage. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has screw terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 60°c operating temperature range. It has a coil current of 18 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 8 ms. It has a long 8 weeks standard lead time. It has a contact current rating of 10 a. The splendid features of the product include lighted indicator, socket included. The product plc-rsc, is a highly preferred choice for users. While 10 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29095, a base product number of the product. The product is designated with the ear99 code number.
