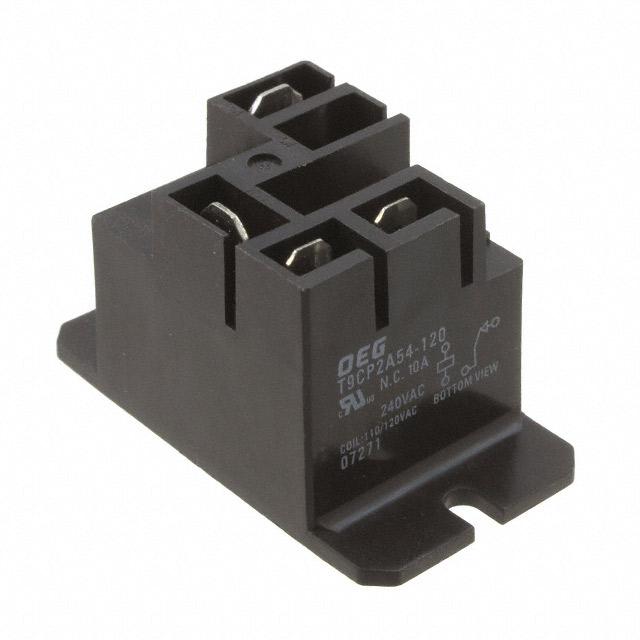

TE Connectivity Potter & Brumfield Relays T9CP2A54-120

T9CP2A54-120 TE Connectivity Potter & Brumfield Relays
T9CP2A54-120
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.49.0075
RoHS Status:
ROHS3 Compliant
Coil Voltage:
120VAC
Termination Style:
Quick Connect - 0.187"/0.250"
REACH Status:
Vendor Undefined
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
2.8 kOhms
Coil Current:
42.9 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC - Max
Seal Rating:
-
Must Operate Voltage:
96 VAC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NC (1 Form B)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Must Release Voltage:
12 VAC
standardLeadTime:
38 Weeks
Contact Rating (Current):
10 A
Features:
-
Mounting Type:
Chassis Mount
Series:
T9C, OEG
Release Time:
15 ms
Coil Insulation:
Class F
Contact Material:
Silver Tin Oxide Indium Oxide (AgSnOInO)
Base Product Number:
T9CP2
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is T9CP2A54-120. It is assigned with possible HTSUS value of 8536.49.0075. The product is rohs3 compliant. The coil voltage of the product is 120vac. Moreover, it has quick connect - 0.187"/0.250" terminal style. In addition, it is vendor undefined. The product has -40°c ~ 85°c operating temperature range. It holds up to 2.8 kohms coil resistance. It has a coil current of 42.9 ma. The coil is a non latching type. The product's switching voltage is 250vac - max. On the other hand, 96 vac is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a spst-nc (1 form b) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. While the must release voltage is a 12 vac. It has a long 38 weeks standard lead time. It has a contact current rating of 10 a. The product is available in chassis mount configuration. The product t9c, oeg, is a highly preferred choice for users. While 15 ms is its release time. The coil is a class f insulation. The product is made from sturdy silver tin oxide indium oxide (agsnoino) materials. Moreover, it corresponds to t9cp2, a base product number of the product. The product is designated with the ear99 code number.
