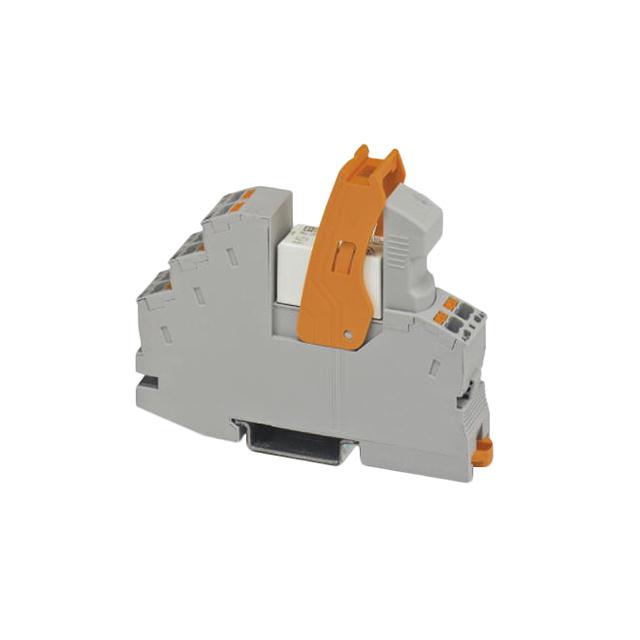

Phoenix Contact 2906224
Product Information
Dimensions:
75 x 16 x 93mm
Coil Voltage:
12V dc
Turn On Time:
8ms
Turn Off Time:
10ms
Input Current:
33mA
Standards Met:
DIN EN 50178, IEC 62103
Switching Voltage:
12 → 250V ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Plug In, Screw
Operating Temperature Range:
-40 → +70°C
Contact Configuration:
SPDT
Length:
75mm
Relay Switching Classification:
Interface Relay Module
Mounting Type:
DIN Rail
Series:
RIF-1-RPT-LDP-12DC/1X21
Depth:
16mm
Height:
93mm
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Maximum Input Voltage:
12V dc
Contact Material:
Silver Alloy
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 70°C
Coil Current:
33 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
20 Weeks
Contact Rating (Current):
11 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
RIF
Release Time:
10 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29062
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2906224 on website for other similar products.
We accept all major payment methods for all products including ET12436987. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2906224 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2906224. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2906224.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12436987 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12436987.
Yes. We ship 2906224 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2906224. The given dimensions of the product include 75 x 16 x 93mm. The coil voltage of the product is 12v dc. It has a 8ms turn On time. The given turn off time is 10ms. It has about 33ma input current . The product complies with all safety standards, such as din en 50178, iec 62103. The product's switching voltage is 12 → 250v ac/dc. It has a maximum operating temperature of +70°c. The terminal is a plug in, screw type. The product has -40 → +70°c of operating temperature range. The contact is equipped with spdt configuration. Its accurate length is 75mm. It has a interface relay module switching relay configuration . The product is available in din rail configuration. The product rif-1-rpt-ldp-12dc/1x21, is a highly preferred choice for users. The product comes in 16mm depth. In addition, the height is 93mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. 12v dc is the maximum voltage of the bespoke product. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has spring terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 70°c operating temperature range. It has a coil current of 33 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 8 ms. It has a long 20 weeks standard lead time. It has a contact current rating of 11 a. The splendid features of the product include diode, lighted indicator, socket included. The product rif, is a highly preferred choice for users. While 10 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29062, a base product number of the product. The product is designated with the ear99 code number.
