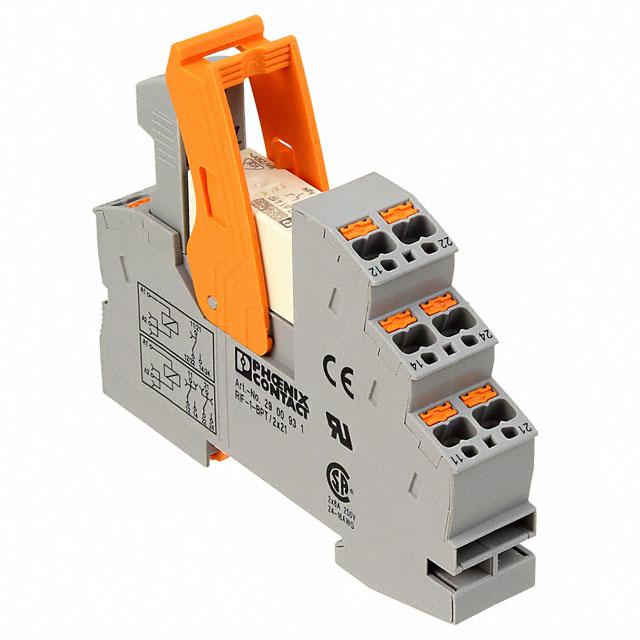

Phoenix Contact 2903340
Product Information
Coil Voltage:
120V ac
Application:
Power
Terminal Type:
Plug In
Coil Resistance:
8800Ω
Life:
10000000 (Mechanical) cycles
Maximum Switching Voltage DC:
250V dc
Maximum Switching Power DC:
240 W
Maximum Operating Temperature:
+50°C
Switching Current:
25A
Latching:
No
Contact Configuration:
SPDT
Depth:
75mm
Mounting Type:
DIN Rail
Series:
RIF-1-RPT-LV-120AC/1X21
Length:
16mm
Height:
93mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Number of Poles:
1
Contact Material:
Silver Alloy
HTSUS:
8536.49.0075
RoHS Status:
ROHS3 Compliant
Coil Voltage:
120VAC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 50°C
Coil Current:
8 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2903340 Models
edacadModelUrl:
/en/models/4755344
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
12 ms
Must Release Voltage:
-
standardLeadTime:
22 Weeks
Contact Rating (Current):
10 A
Features:
Lighted Indicator, Socket Included, Varistor
Mounting Type:
DIN Rail
Series:
RIF
Release Time:
20 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29033
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2903340 on website for other similar products.
We accept all major payment methods for all products including ET12114692. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2903340 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2903340. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2903340.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12114692 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12114692.
Yes. We ship 2903340 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2903340. The coil voltage of the product is 120v ac. Applications Information involves power. The terminal is a plug in type. It holds up to 8800ω coil resistance. It is capable of doing 10000000 (mechanical) cycles in a lifetime . While it carries 250v dc of maximum DC switching voltage. It bears a maximum 240 w of DC switching power. It has a maximum operating temperature of +50°c. It is integrated with 25a switching current. Latching Options - no. The contact is equipped with spdt configuration. The product comes in 75mm depth. The product is available in din rail configuration. The product rif-1-rpt-lv-120ac/1x21, is a highly preferred choice for users. Its accurate length is 16mm. In addition, the height is 93mm. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.5 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.49.0075. The product is rohs3 compliant. The coil voltage of the product is 120vac. Moreover, it has spring terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 50°c operating temperature range. It has a coil current of 8 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 12 ms. It has a long 22 weeks standard lead time. It has a contact current rating of 10 a. The splendid features of the product include lighted indicator, socket included, varistor. The product rif, is a highly preferred choice for users. While 20 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29033, a base product number of the product. The product is designated with the ear99 code number.
