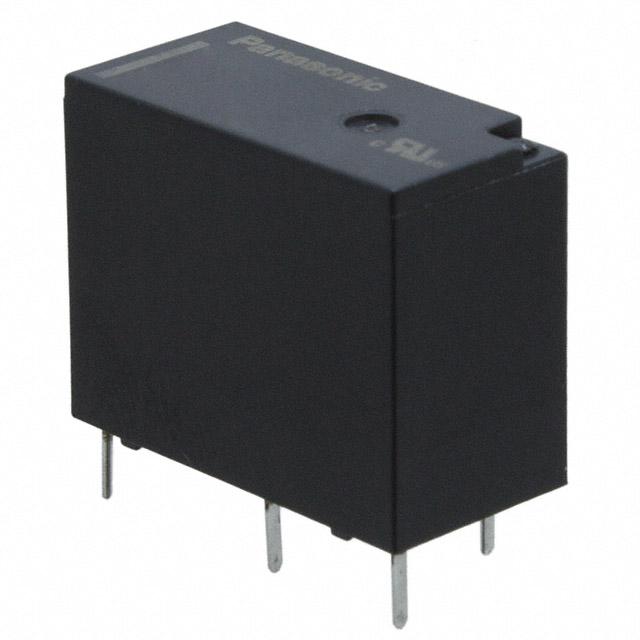

Panasonic Electric Works ALQ109
Product Information
Must Release Voltage:
0.45 VDC
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
9VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
CQC, cURuus, VDE
Coil Resistance:
203 Ohms
Coil Current:
44.4 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 30VDC - Max
Load - Max Switching:
1250VA, 150W
Seal Rating:
-
edacadModel:
ALQ109 Models
edacadModelUrl:
/en/models/3511291
Must Operate Voltage:
6.75 VDC
Relay Type:
General Purpose
Package:
Box
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
22 Weeks
Contact Rating (Current):
5 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
ALQ
Release Time:
20 ms
Coil Insulation:
Class B
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
ALQ10
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ALQ109 on website for other similar products.
We accept all major payment methods for all products including ET12050907. Please check your shopping cart at the time of order.
You can order Panasonic Electric Works brand products with ALQ109 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electric Works ALQ109. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electric Works ALQ109.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12050907 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electric Works" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12050907.
Yes. We ship ALQ109 Internationally to many countries around the world.
This is manufactured by Panasonic Electric Works. The manufacturer part number is ALQ109. While the must release voltage is a 0.45 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 9vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -40°c ~ 85°c operating temperature range. It is approved by cqc, curuus, vde. It holds up to 203 ohms coil resistance. It has a coil current of 44.4 ma. The coil is a non latching type. The product's switching voltage is 250vac, 30vdc - max. On the other hand, 6.75 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in box package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a long 22 weeks standard lead time. It has a contact current rating of 5 a. The product is available in through hole configuration. The product alq, is a highly preferred choice for users. While 20 ms is its release time. The coil is a class b insulation. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to alq10, a base product number of the product. The product is designated with the ear99 code number.
