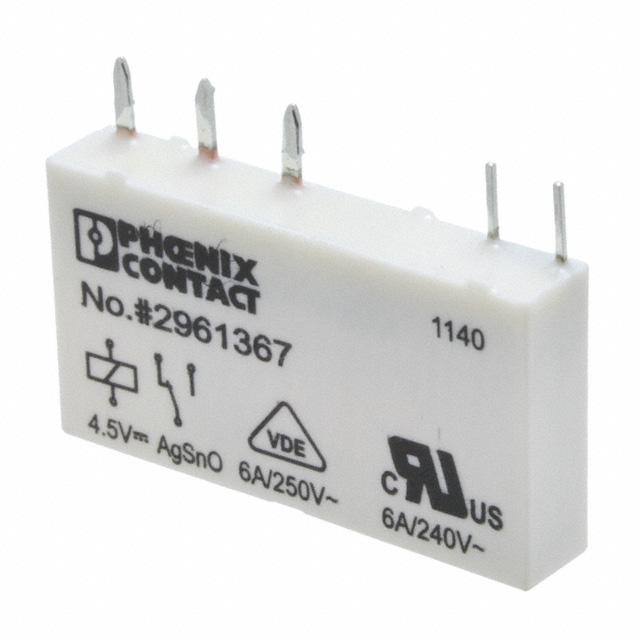

Phoenix Contact 2961367
Product Information
Dimensions:
5 x 15 x 28mm
Mounting Type:
PCB Mount
Contact Configuration:
SPDT
Input Voltage Range:
Maximum of 4.5V dc
Load Current Rating:
6A
Length:
5mm
Load Voltage Rating:
250V ac/dc
Height:
28mm
Depth:
15mm
Maximum Input Voltage:
4.5V dc
Input Current:
38mA
Minimum Operating Temperature:
-40°C
Turn On Time:
5ms
Turn Off Time:
2.5ms
Operating Temperature Range:
-40 → +85°C
Input Resistance:
119Ω
Maximum Operating Temperature:
85°C
Terminal Type:
PCB Pin
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
4.5VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
119 Ohms
Coil Current:
38 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
6 A
Features:
-
Mounting Type:
Through Hole
Series:
REL-MR
Release Time:
2.5 ms
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
29613
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2961367 on website for other similar products.
We accept all major payment methods for all products including ET11160299. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2961367 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2961367. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2961367.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11160299 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11160299.
Yes. We ship 2961367 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2961367. The given dimensions of the product include 5 x 15 x 28mm. The product is available in pcb mount configuration. The contact is equipped with spdt configuration. It has maximum of 4.5v dc of input voltage range. It has about 6a load current rating . Its accurate length is 5mm. It has a 250v ac/dc voltage load rating . In addition, the height is 28mm. The product comes in 15mm depth. 4.5v dc is the maximum voltage of the bespoke product. It has about 38ma input current . Whereas, the minimum operating temperature of the product is -40°c. It has a 5ms turn On time. The given turn off time is 2.5ms. The product has -40 → +85°c of operating temperature range. Moreover, it has approximately 119ω input resistance . It has a maximum operating temperature of 85°c. The terminal is a pcb pin type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 4.5vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -40°c ~ 85°c operating temperature range. It holds up to 119 ohms coil resistance. It has a coil current of 38 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 5 ms. It has a long 8 weeks standard lead time. It has a contact current rating of 6 a. The product is available in through hole configuration. The product rel-mr, is a highly preferred choice for users. While 2.5 ms is its release time. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to 29613, a base product number of the product. The product is designated with the ear99 code number.
