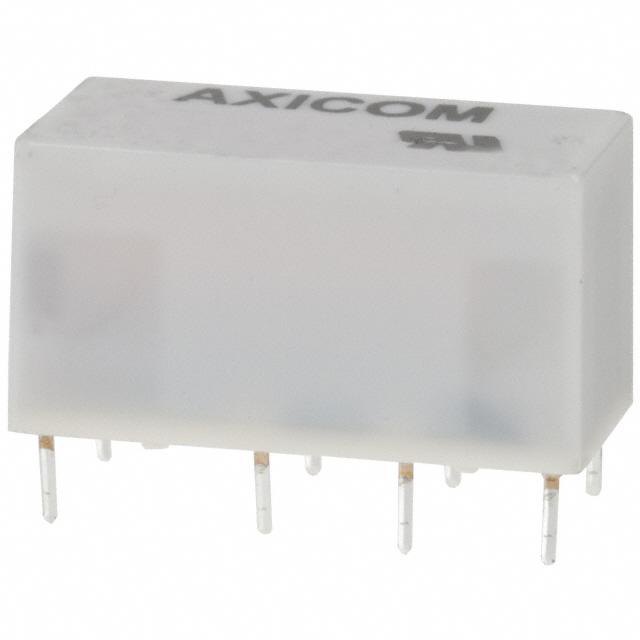

TE Connectivity Potter & Brumfield Relays V23105A5003A201

V23105A5003A201 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

Must Release Voltage:
0.6 VDC
HTSUS:
8536.41.0020
RoHS Status:
RoHS Compliant
Coil Voltage:
12VDC
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
cURus
Coil Resistance:
960 Ohms
Coil Current:
12.5 mA
Coil Type:
Non Latching
title:
V23105A5003A201
Seal Rating:
-
edacadModel:
V23105A5003A201 Models
edacadModelUrl:
/en/models/291020
Must Operate Voltage:
9.6 VDC
Relay Type:
Telecom
Load - Max Switching:
750VA, 660W
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
6 ms
Qualification:
-
Contact Rating (Current):
3 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
V23105, AXICOM
Switching Voltage:
250VAC, 220VDC - Max
Release Time:
4 ms
Packaging:
Tube
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
V23105
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is V23105A5003A201. While the must release voltage is a 0.6 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs compliant. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It is approved by curus. It holds up to 960 ohms coil resistance. It has a coil current of 12.5 ma. The coil is a non latching type. On the other hand, 9.6 vdc is the given crucial/must operating voltage. This is basically a telecom. It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 6 ms. It has a contact current rating of 3 a. The product is available in through hole configuration. The product v23105, axicom, is a highly preferred choice for users. The product's switching voltage is 250vac, 220vdc - max. While 4 ms is its release time. In addition, tube is the available packaging type of the product. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to v23105, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1393792 UL Markings 02/Oct/2014(PCN Design/Specification)
pdf icon
End of Life 03/MAY/2023(PCN Obsolescence/ EOL)
