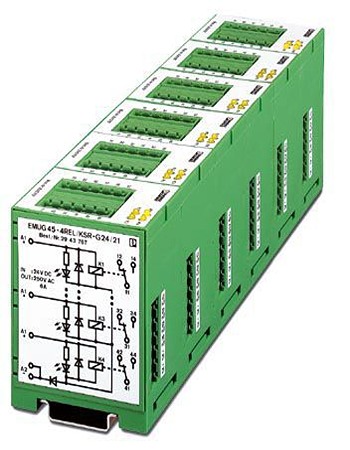

Phoenix Contact 2943767
Product Information
Life:
20000000 Cycles
Dimensions:
79 x 45 x 60mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-20 → +55°C
Load Current Rating:
8A
Depth:
45mm
Load Voltage Rating:
250V ac/dc
Height:
60mm
Length:
79mm
Maximum Input Voltage:
24V dc
Input Current:
21mA
Minimum Operating Temperature:
-20°C
Turn On Time:
7ms
Turn Off Time:
11ms
Terminal Type:
Screw
Contact Configuration:
SPDT
Maximum Operating Temperature:
+55°C
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
RoHS Compliant
Coil Voltage:
24VDC
Termination Style:
-
Operating Temperature:
-20°C ~ 55°C
Coil Current:
21 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
4PDT (4 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
7 ms
Must Release Voltage:
-
standardLeadTime:
19 Weeks
Contact Rating (Current):
6 A
Features:
Socket Included
Mounting Type:
DIN Rail
Series:
-
Release Time:
11 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
29437
Contact Material:
Silver Nickel (AgNi)
Checking for live stock
FAQs
Yes. You can also search 2943767 on website for other similar products.
We accept all major payment methods for all products including ET10387275. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2943767 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2943767. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2943767.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10387275 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10387275.
Yes. We ship 2943767 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2943767. It is capable of doing 20000000 cycles in a lifetime . The given dimensions of the product include 79 x 45 x 60mm. The product is available in din rail configuration. The product has -20 → +55°c of operating temperature range. It has about 8a load current rating . The product comes in 45mm depth. It has a 250v ac/dc voltage load rating . In addition, the height is 60mm. Its accurate length is 79mm. 24v dc is the maximum voltage of the bespoke product. It has about 21ma input current . Whereas, the minimum operating temperature of the product is -20°c. It has a 7ms turn On time. The given turn off time is 11ms. The terminal is a screw type. The contact is equipped with spdt configuration. It has a maximum operating temperature of +55°c. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs compliant. The coil voltage of the product is 24vdc. The product has -20°c ~ 55°c operating temperature range. It has a coil current of 21 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a 4pdt (4 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 7 ms. It has a long 19 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include socket included. While 11 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to 29437, a base product number of the product. The product is made from sturdy silver nickel (agni) materials.
