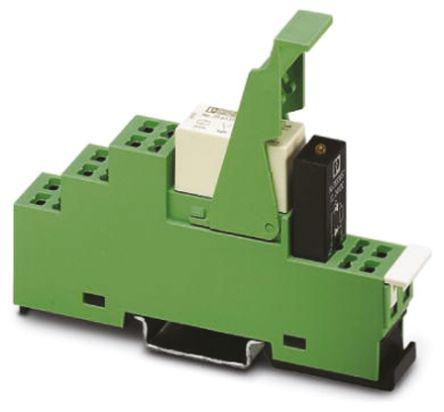

Phoenix Contact 2834591
Product Information
Life:
30000000 Cycles
Dimensions:
72 x 16 x 97mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-25 → +60°C
Load Current Rating:
15A
Depth:
16mm
Load Voltage Rating:
250V ac/dc
Height:
97mm
Length:
72mm
Maximum Input Voltage:
230V ac
Input Current:
5.5 mA @ 60 Hz, 6 mA @ 50 Hz
Minimum Operating Temperature:
-25°C
Turn On Time:
12ms
Turn Off Time:
22ms
Terminal Type:
Screw
Contact Configuration:
DPDT
Maximum Operating Temperature:
+60°C
Contact Material:
Silver Alloy
HTSUS:
8536.49.0050
RoHS Status:
RoHS Compliant
Coil Voltage:
230VAC
Termination Style:
Spring Terminal
Operating Temperature:
-25°C ~ 60°C
Coil Current:
5.5 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2834591 Models
edacadModelUrl:
/en/models/3604692
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
12 ms
Must Release Voltage:
-
Contact Rating (Current):
8 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PR1
Release Time:
22 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
28345
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2834591 on website for other similar products.
We accept all major payment methods for all products including ET10320794. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2834591 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2834591. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2834591.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10320794 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10320794.
Yes. We ship 2834591 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2834591. It is capable of doing 30000000 cycles in a lifetime . The given dimensions of the product include 72 x 16 x 97mm. The product is available in din rail configuration. The product has -25 → +60°c of operating temperature range. It has about 15a load current rating . The product comes in 16mm depth. It has a 250v ac/dc voltage load rating . In addition, the height is 97mm. Its accurate length is 72mm. 230v ac is the maximum voltage of the bespoke product. It has about 5.5 ma @ 60 hz, 6 ma @ 50 hz input current . Whereas, the minimum operating temperature of the product is -25°c. It has a 12ms turn On time. The given turn off time is 22ms. The terminal is a screw type. The contact is equipped with dpdt configuration. It has a maximum operating temperature of +60°c. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.49.0050. The product is rohs compliant. The coil voltage of the product is 230vac. Moreover, it has spring terminal terminal style. The product has -25°c ~ 60°c operating temperature range. It has a coil current of 5.5 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 12 ms. It has a contact current rating of 8 a. The splendid features of the product include lighted indicator, socket included. The product pr1, is a highly preferred choice for users. While 22 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 28345, a base product number of the product. The product is designated with the ear99 code number.
