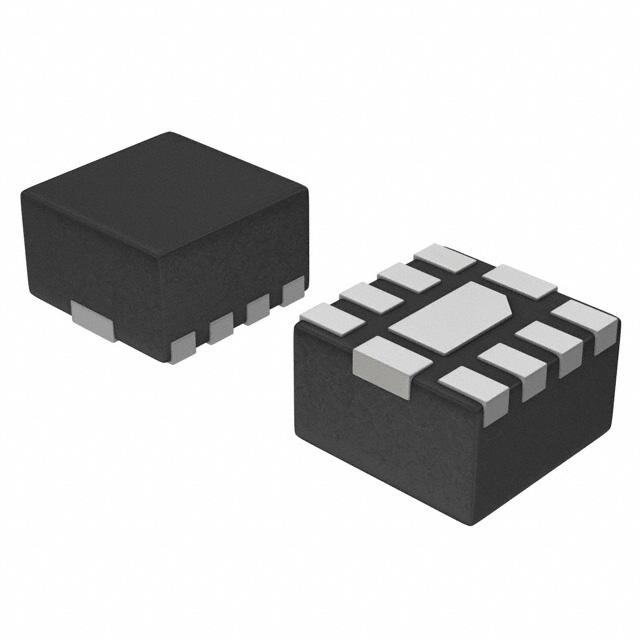

onsemi Power Line Filter
Product Information
Depth:
1mm
Length:
1.6mm
Dimensions:
1.6 x 1.6 x 1mm
Center / Cutoff Frequency:
105MHz (Cutoff)
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Attenuation Value:
-35dB @ 800MHz ~ 2.2GHz
Package / Case:
8-VFDFN Exposed Pad
Type:
Low Pass
Voltage - Rated:
-
ESD Protection:
Yes
REACH Status:
REACH Unaffected
Applications:
Data Lines for Mobile Devices
Number of Channels:
4
Resistance - Channel (Ohms):
100
Package:
Tape & Reel (TR)
Size / Dimension:
0.063" L x 0.063" W (1.60mm x 1.60mm)
Values:
R = 100Ohms, C = 17pF
standardLeadTime:
8 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
-
Operating Temperature:
-40°C ~ 85°C
Height:
0.039" (1.00mm)
Filter Order:
2nd
Technology:
RC (Pi)
Base Product Number:
NUF4403
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NUF4403MNT1G on website for other similar products.
We accept all major payment methods for all products including ET21468855. Please check your shopping cart at the time of order.
You can order onsemi brand products with NUF4403MNT1G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Line Filters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi Power Line Filter. You can also check on our website or by contacting our customer support team for further order details on onsemi Power Line Filter.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21468855 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21468855.
Yes. We ship NUF4403MNT1G Internationally to many countries around the world.
This is Power Line Filter manufactured by onsemi. The manufacturer part number is NUF4403MNT1G. The product comes in 1mm depth. Its accurate length is 1.6mm. The given dimensions of the product include 1.6 x 1.6 x 1mm. The product has 105mhz (cutoff) frequency. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The given attenuation value involves -35db @ 800mhz ~ 2.2ghz. Moreover, the product comes in 8-vfdfn exposed pad. It comes in low pass configuration. ESD Protected - yes. In addition, it is reach unaffected. The product is widely employed in data lines for mobile devices. It is supplied with 4 channels. Carreis the channel resistance of 100 ohms. It is shipped in tape & reel (tr) package . The product's diameters include 0.063" l x 0.063" w (1.60mm x 1.60mm). Values include - r = 100ohms, c = 17pf . It has a long 8 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product has -40°c ~ 85°c operating temperature range. In addition, the height is 0.039" (1.00mm). The filter is arrange in 2nd order. This product use rc (pi) technology. Moreover, it corresponds to nuf4403, a base product number of the product. The product is designated with the ear99 code number.
