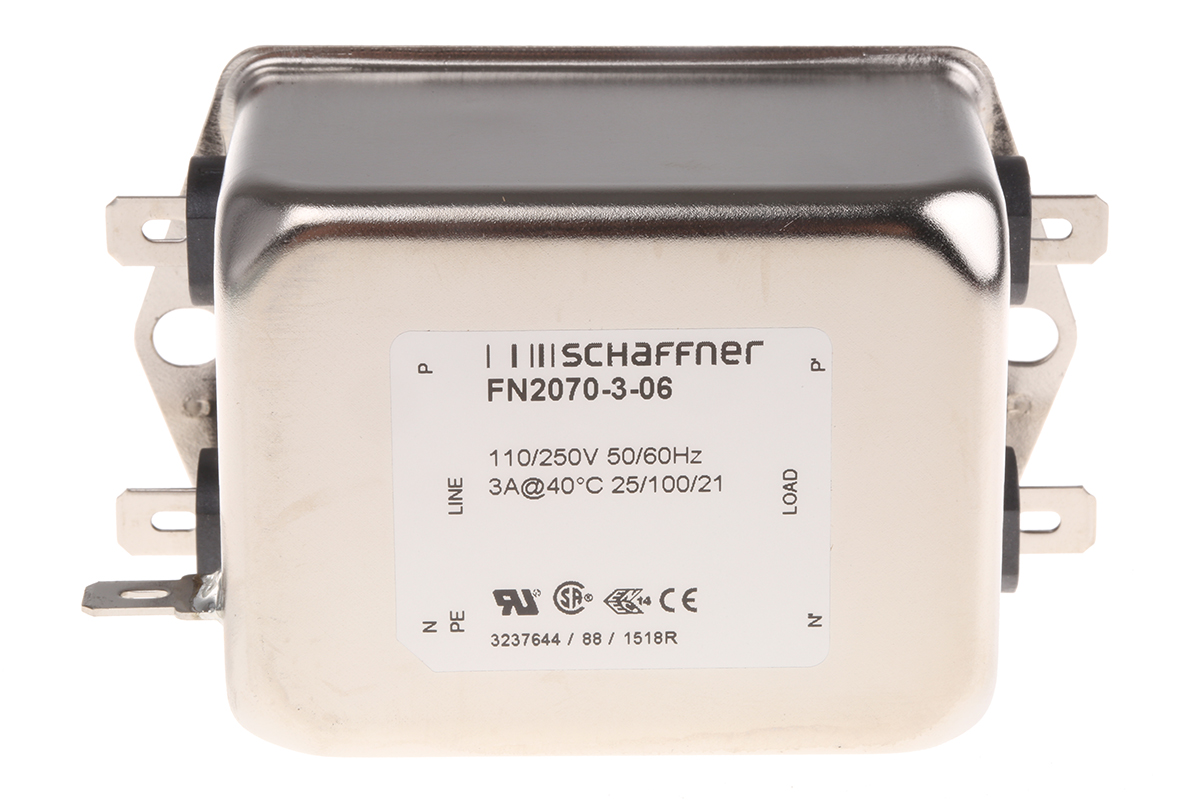

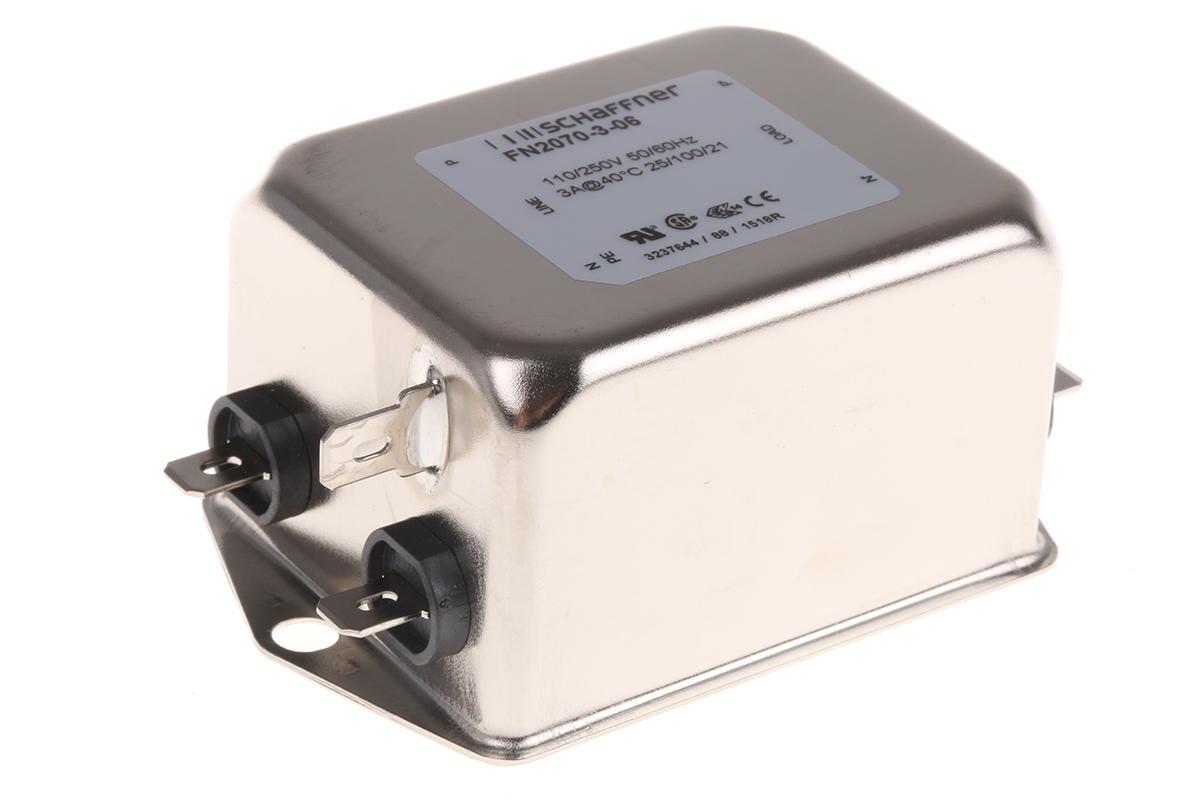

Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals

FN2070-3-06 Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals
FN2070-3-06
FN2070-3-06
FN2070-3-06 Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals
Schaffner

Product Information

Resistance:
470kΩ
Leakage Current:
0.734mA
Maximum Current:
3A
Maximum Voltage:
250V ac
Series:
FN2070
Termination Style:
Fast-On
Length:
85mm
Height:
40.3mm
Capacitance:
4.7nF
Depth:
54mm
Number of Stages:
2
Standards/Approvals:
No
Power Loss:
2.2W
Inductance:
9.8 mH
Operating Frequency:
400 Hz
Number of Phases:
1
Product Type:
EMI Filter
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-25°C
Mount Type:
Chassis
RoHs Compliant
Checking for live stock

This is FN2070 Series 3A 110 V ac 250 V ac DC to 400Hz Chassis Mount RFI Filter with Tab Terminals manufactured by Schaffner. The manufacturer part number is FN2070-3-06. It carries 470kω resistance. It harbors 0.734ma of leakage current. It also carries 3a maximum current. It has a maximum 250v ac voltage . The product fn2070, is a highly preferred choice for users. Moreover, it has fast-on terminal style. Its accurate length is 85mm. In addition, the height is 40.3mm. It provides a 4.7nf of capacitance value. The product comes in 54mm depth. It includes 2 stages. It has a typical 2.2w power loss ratio . The product has a 9.8 mh inductance value. Furthermore, the product has 400 hz operating frequency range. Whereas it is comprised of 1 phases. emi filter is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 100°c. Whereas, the minimum operating temperature of the product is -25°c. It has a chassis type mount .

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship FN2070-3-06 Internationally to many countries around the world.
Yes. You can also search FN2070-3-06 on website for other similar products.
We accept all major payment methods for all products including ET16767868. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16767868 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16767868.
You can order Schaffner brand products with FN2070-3-06 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Line Filters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals. You can also check on our website or by contacting our customer support team for further order details on Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals.
