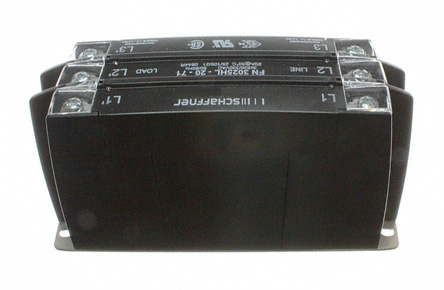

Schaffner FN3025 Series 20A 3 x 520/300 V ac 0 → 60Hz Chassis Mount, DIN Rail EMI Filter, with Screw Terminals

FN3025HL-20-71 Schaffner FN3025 Series 20A 3 x 520/300 V ac 0 → 60Hz Chassis Mount, DIN Rail EMI Filter, with Screw Terminals
Schaffner

Product Information

Dimensions:
150 x 50 x 78mm
Mounting Type:
Chassis Mount
Series:
FN3025
Maximum Current Rating:
20A
Termination Style:
Screw
Length:
150mm
Height:
78mm
Depth:
50mm
Power Loss:
6.2W
Leakage Current:
0.4 mA
Maximum Voltage Rating:
520/300 V ac
Operating Frequency:
0 → 60Hz
Number of Phases:
3
Number of Stages:
Single Stage
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-25°C
RoHs Compliant
Checking for live stock

This is FN3025 Series 20A 3 x 520/300 V ac 0 → 60Hz Chassis Mount DIN Rail EMI Filter with Screw Terminals manufactured by Schaffner. The manufacturer part number is FN3025HL-20-71. The given dimensions of the product include 150 x 50 x 78mm. The product is available in chassis mount configuration. The product fn3025, is a highly preferred choice for users. Additionally, the product has a maximum 20a current rating . Moreover, it has screw terminal style. Its accurate length is 150mm. In addition, the height is 78mm. The product comes in 50mm depth. It has a typical 6.2w power loss ratio . It harbors 0.4 ma of leakage current. It has a maximum 520/300 v ac voltage rating. Furthermore, the product has 0 → 60hz operating frequency range. Whereas it is comprised of 3 phases. It includes single stage stages. It has a maximum operating temperature of +100°c. Whereas, the minimum operating temperature of the product is -25°c.
