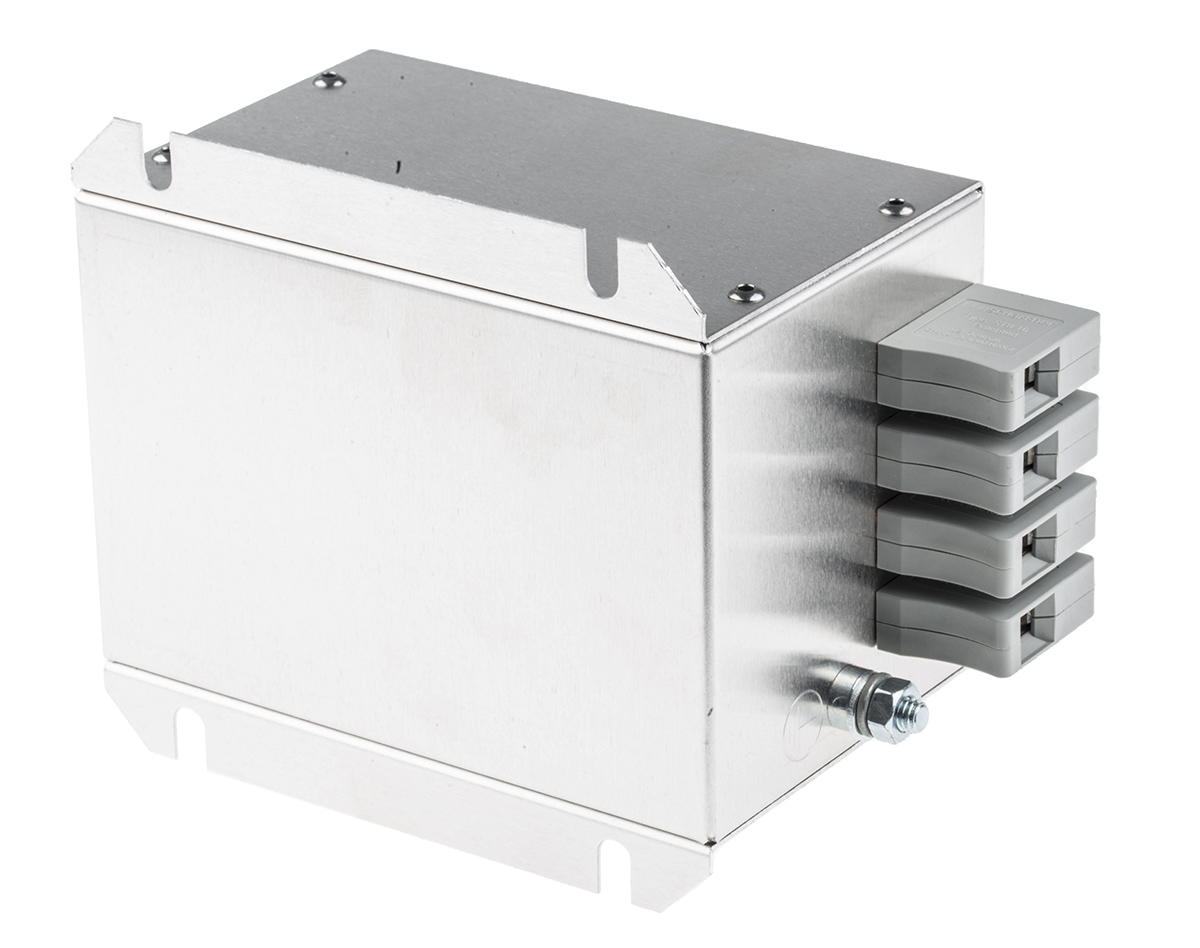

Schaffner FN3256 Series 36A 480 V ac 60Hz Chassis Mount EMI Filter, with Wire Lead Terminals

FN3256H-36-33 Schaffner FN3256 Series 36A 480 V ac 60Hz Chassis Mount EMI Filter, with Wire Lead Terminals
FN3256H-36-33
FN3256H-36-33
Schaffner

Product Information

Dimensions:
130 x 118 x 85mm
Mounting Type:
Chassis Mount
Series:
FN3256
Maximum Current Rating:
36A
Termination Style:
Terminal Block
Length:
130mm
Height:
85mm
Depth:
118mm
Power Loss:
11.3W
Leakage Current:
1 mA
Maximum Voltage Rating:
520/300 V ac
Operating Frequency:
60Hz
Number of Phases:
3
Number of Stages:
Single Stage
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-25°C
Resistance:
1500 kΩ,680kΩ
RoHs Compliant
Checking for live stock

This is FN3256 Series 36A 480 V ac 60Hz Chassis Mount EMI Filter with Wire Lead Terminals manufactured by Schaffner. The manufacturer part number is FN3256H-36-33. The given dimensions of the product include 130 x 118 x 85mm. The product is available in chassis mount configuration. The product fn3256, is a highly preferred choice for users. Additionally, the product has a maximum 36a current rating . Moreover, it has terminal block terminal style. Its accurate length is 130mm. In addition, the height is 85mm. The product comes in 118mm depth. It has a typical 11.3w power loss ratio . It harbors 1 ma of leakage current. It has a maximum 520/300 v ac voltage rating. Furthermore, the product has 60hz operating frequency range. Whereas it is comprised of 3 phases. It includes single stage stages. It has a maximum operating temperature of +100°c. Whereas, the minimum operating temperature of the product is -25°c. It carries 1500 kω,680kω resistance.

pdf icon
FN 3256 series Datasheet(Technical Reference)
pdf icon
Schaffner EMC/EMI Catalogue(Technical Reference)
pdf icon
PCN Notification - Insulation Tube Colour(Technical Reference)
