Schaffner FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals

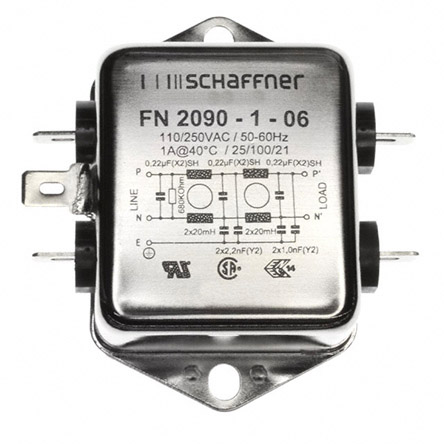

FN2090-1-06 Schaffner FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals
FN2090-1-06 Schaffner FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals
Schaffner

Product Information

Resistance:
680kΩ
Leakage Current:
0.5mA
Maximum Current:
1A
Maximum Voltage:
250V ac
Series:
FN2090
Termination Style:
Fast-On
Length:
71mm
Height:
22.3mm
Capacitance:
220nF
Depth:
46.6mm
Number of Stages:
2
Standards/Approvals:
No
Power Loss:
1.8W
Inductance:
20 mH
Operating Frequency:
0 to 400 Hz
Number of Phases:
1
Product Type:
EMI Filter
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-25°C
Mount Type:
Chassis
RoHs Compliant
Checking for live stock

This is FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter with Tab Terminals manufactured by Schaffner. The manufacturer part number is FN2090-1-06. It carries 680kω resistance. It harbors 0.5ma of leakage current. It also carries 1a maximum current. It has a maximum 250v ac voltage . The product fn2090, is a highly preferred choice for users. Moreover, it has fast-on terminal style. Its accurate length is 71mm. In addition, the height is 22.3mm. It provides a 220nf of capacitance value. The product comes in 46.6mm depth. It includes 2 stages. It has a typical 1.8w power loss ratio . The product has a 20 mh inductance value. Furthermore, the product has 0 to 400 hz operating frequency range. Whereas it is comprised of 1 phases. emi filter is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 100°c. Whereas, the minimum operating temperature of the product is -25°c. It has a chassis type mount .

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship FN2090-1-06 Internationally to many countries around the world.
Yes. You can also search FN2090-1-06 on website for other similar products.
We accept all major payment methods for all products including ET13813394. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13813394 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13813394.
You can order Schaffner brand products with FN2090-1-06 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Line Filters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals. You can also check on our website or by contacting our customer support team for further order details on Schaffner FN2090 Series 1A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals.
