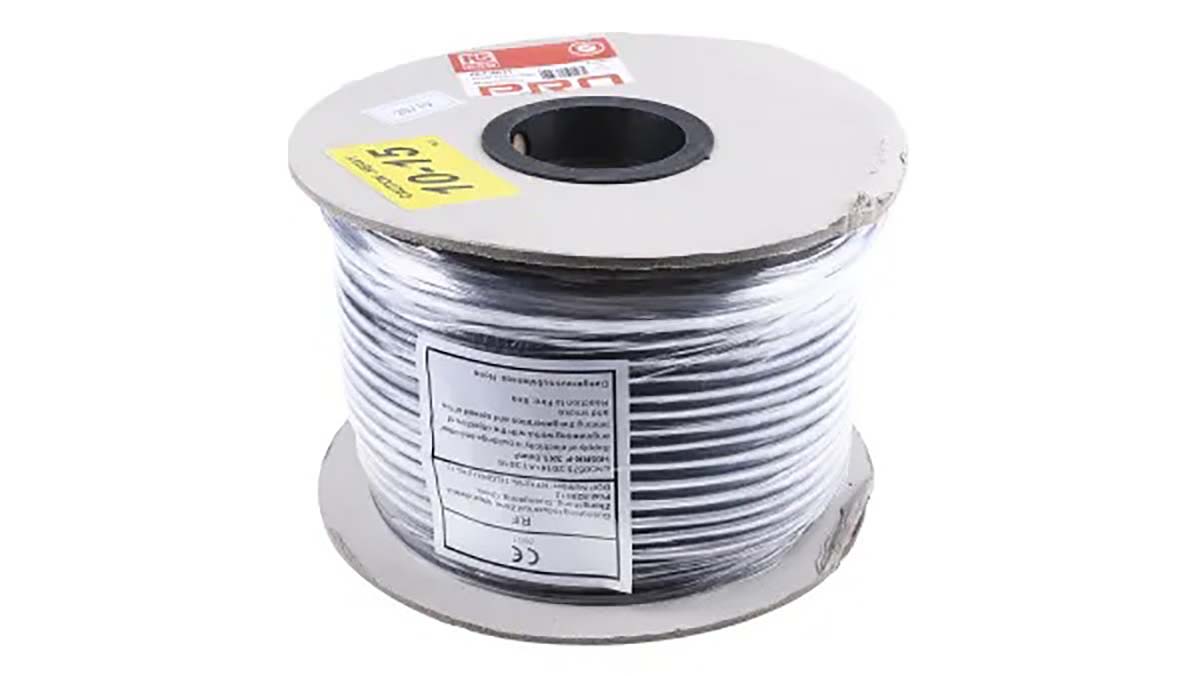

RS Pro 4 Core 2.5 mm² Multicore Mains Power Cable, Black CPE Sheath 100m, 20 A 300 V, 500 V, TRS H05RR-F

863-4033 RS Pro 4 Core 2.5 mm² Multicore Mains Power Cable, Black CPE Sheath 100m, 20 A 300 V, 500 V, TRS H05RR-F
863-4033
863-4033
863-4033 RS Pro 4 Core 2.5 mm² Multicore Mains Power Cable, Black CPE Sheath 100m, 20 A 300 V, 500 V, TRS H05RR-F
RS Pro

Product Information

American Wire Gauge:
13 AWG
Current Rating:
20 A
Conductor Resistance:
7.98 Ω/km
Number of Cores:
4
CPR Certification:
Eca
Outer Diameter:
11.2 → 11.8mm
Number of Strands:
49
Standards Met:
Euroclass Eca
Core Strands:
49/0.24 mm
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+60°C
Voltage Rating:
300 V, 500 V
Length:
100m
Insulation Material:
EPDM
Sheath Material:
CPE
Conductor Material:
Copper
Size of Strands:
0.24 mm
Cable Type:
TRS
Sheath Colour:
Black
Cross Sectional Area:
2.5 mm²
Minimum Operating Temperature:
-25°C
European Harmonised Code:
H05RR-F
Checking for live stock

This is 4 Core 2.5 mm² Multicore Mains Power Cable Black CPE Sheath 100m 20 A 300 V 500 V TRS H05RR-F manufactured by RS Pro. The manufacturer part number is 863-4033. Features 13 awg - American Wire Gauge. The product has a current rating of 20 a. The conductor has 7.98 ω/km resistance. The product consists of 4 cores. Its outer diameter is 11.2 → 11.8mm. Additionally, it contains 49 strands. The product complies with all safety standards, such as euroclass eca. The core strands are 49/0.24 mm. It has a stranded type conductor strand . It has a maximum operating temperature of +60°c. Moreover, the product has a nominal 300 v, 500 v voltage rating. Its accurate length is 100m. It has a robust epdm insulation material. The sheath is constructed from durable and adorable cpe material. The conductor is made from copper material. The strand size includes 0.24 mm. It is a typical trs cable. The sheath has an adorable black colour. The product has 2.5 mm² cross section area. Whereas, the minimum operating temperature of the product is -25°c. It has h05rr-f European harmonized code .

pdf icon
RS Pro Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
Manufacturer Information(Technical Reference)
