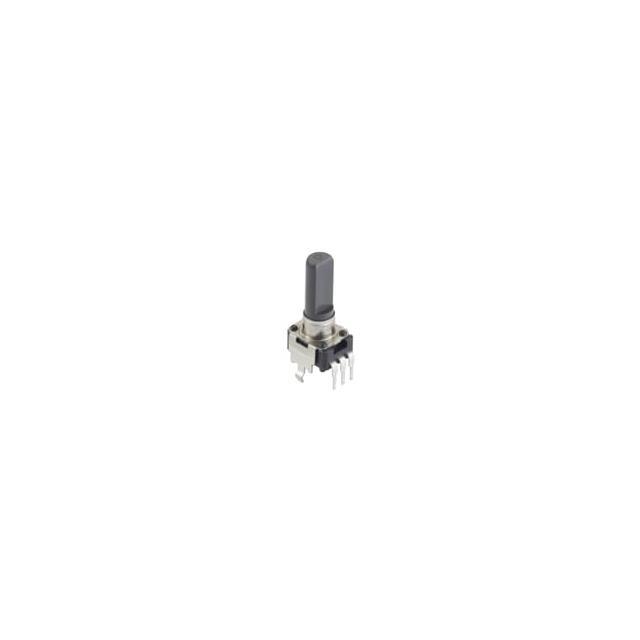

Alps Alpine RK09D1130C2P, Electric Rotary Potentiometer Linear

Enrgtech Part No: ET18214826
|
Manufacturer Part No:
RK09D1130C2P
|
Manufacturer: Alps Alpine

RK09D1130C2P Alps Alpine , Electric Rotary Potentiometer Linear

Product Information

Shaft Diameter:

6 mm

Actuator Type:

Flatted Shaft

Mounting Type:

Through Hole

Potentiometer Type:

Rotary

Series:

RK09D

Termination Style:

Number of Gangs:

Number of Turns:

Shaft Length:

25mm

Electrical Taper:

Linear

Power Rating:

0.05W

Maximum Resistance:

10kΩ

Checking for live stock

The Alps Alpine RK09D1130C2P rotary potentiometer is a compact variable resistor designed for smooth and accurate adjustment in electronic circuits. Built with a 6 mm diameter shaft and a linear resistance profile, it is generally used where precise control of voltage or signal level is required. Rated at 10 kω with ±20% tolerance and 0.05 W of power handling, it is well suited for low-power electronic applications.

Core Capabilities of the Alps RK09D1130C2P Electric Rotary Potentiometer

Linear resistance characteristic for predictable and stable control.
10kΩ resistance value suitable for signal and level adjustment circuits.
6 mm diameter shaft fits standard control knobs.
Compact body design supports space-constrained PCB layouts.
Rated at 0.05 W for low-power electronic use.
Built for smooth rotation and consistent performance.

Product Use Cases

This rotary potentiometer is typically used in:

Audio equipment, such as volume and tone controls
Consumer electronics and small appliances
Control panels and adjustment interfaces
Signal conditioning and tuning circuits
OEM electronic assemblies

Insulated Shaft Potentiometer 9mm Size Insulated Shaft Snap-in Type RK09K/RK09D Series Data Sheet(Technical Reference)

RK09K.EN Datasheet(Datasheets)
