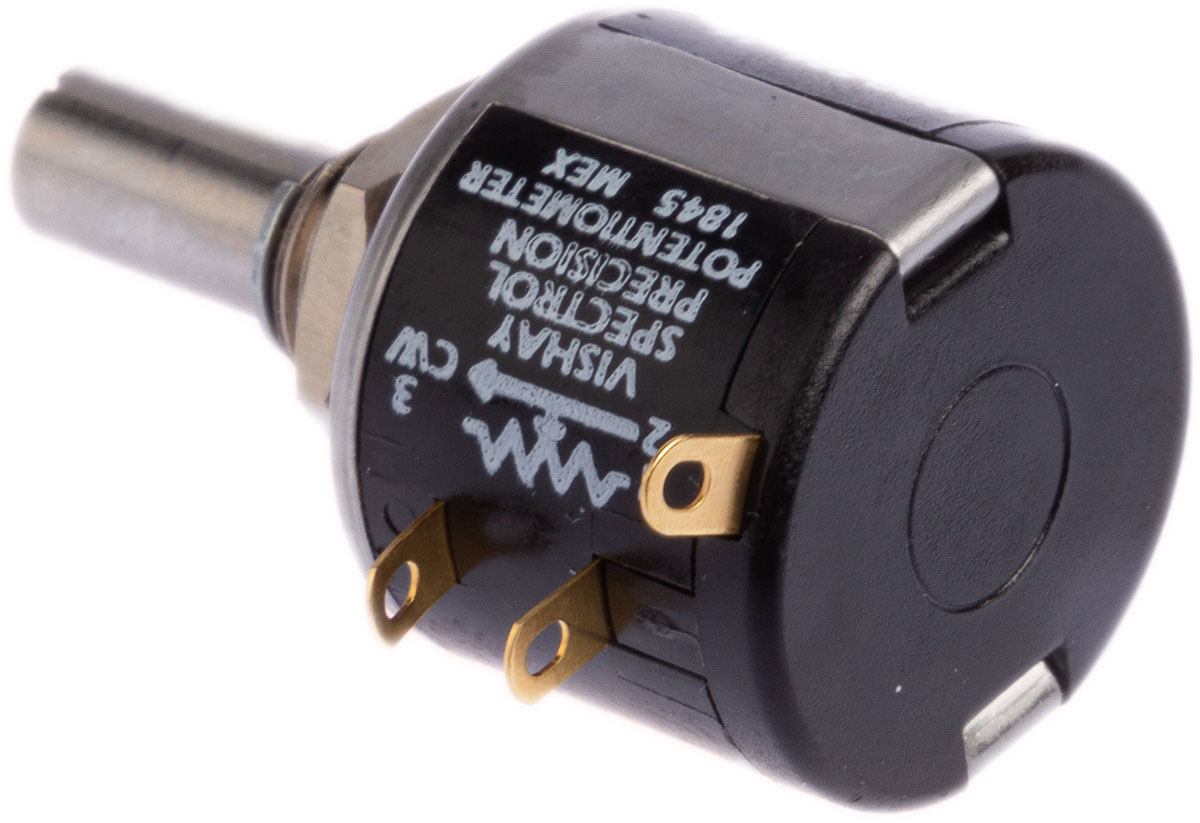

Vishay 534 Series Wirewound Potentiometer with a 6.34 mm Dia. Shaft 10-Turn, 5kΩ, ±5%, 2W, ±20ppm/°C, Panel Mount

534B1502JL Vishay 534 Series Wirewound Potentiometer with a 6.34 mm Dia. Shaft 10-Turn, 5kΩ, ±5%, 2W, ±20ppm/°C, Panel Mount
534B1502JL
534B1502JL Vishay 534 Series Wirewound Potentiometer with a 6.34 mm Dia. Shaft 10-Turn, 5kΩ, ±5%, 2W, ±20ppm/°C, Panel Mount
Vishay

Product Information

Shaft Diameter:
6.35 mm
Mounting Type:
Panel Mount
Potentiometer Type:
Rotary
Series:
534
Termination Style:
Solder Lug
Number of Gangs:
1
Number of Turns:
10
Shaft Length:
20.6mm
Actuator Type:
Slotted Shaft
Electrical Taper:
Linear
Power Rating:
2W
Element Material:
Wirewound
Tolerance:
±5%
Maximum Resistance:
5kΩ
RoHs Compliant
Checking for live stock

7/8 in. 10 Turn 534 Series Potentiometers A comprehensive selection of 7/8 inch (22.2 mm) 10 turn, 534 series linear panel mount potentiometers from Vishay. This potentiometer range features 100 Ω to 100 kΩ versions with 2W power handling, and 5% tolerance. These durable 534 Series potentiometers are rated at one million lifecycles and are suitable for industrial control applications, medical instruments, wire cutting machines, and welding machines. Features and Benefits: Wirewound element Stainless steel end slotted shaft Bushing mount design, sleeve bearing type Wide range available 100 Ω to 100 kΩ resistance Ten turns, with 5% tolerance 2W power rating Dual gang configuration and concentric shafts Supplied with metal lock washer and nut Resistance tolerance ± 5% Linearity (Independent) ± 0.2% Temperature coefficient (Wire only) 20ppm/ °C Insulation resistance @500V d.c 1000MOhm Dielectric strength 1000V r.m.s Rotational life 1 million shaft revolutions Starting torque (max) 0·5 oz-in (36 gcm) Operating temperature range -55°C → 125°C Dimensions body: Ø 22·22 L. 19·1 Imperial shaft Ø 6·35 L.20·6mm (inc. bush) Metric shaft Ø 6·00 L.20·6mm (inc. bush) Precision - Multi-Turn and Servo

pdf icon
Quick Reference Listing(Technical Reference)
pdf icon
Precision Potentiometers Selector Guide(Technical Reference)
pdf icon
Rotational Transducers Selector Guide(Technical Reference)
pdf icon
Model 533, 534, 535 Datasheet(Technical Reference)
pdf icon
Motion Transducers & Dials Selector Guide(Technical Reference)
pdf icon
Variable Resistors Brochure(Technical Reference)
pdf icon
Motion Transducers for Aeronautic(Technical Reference)
