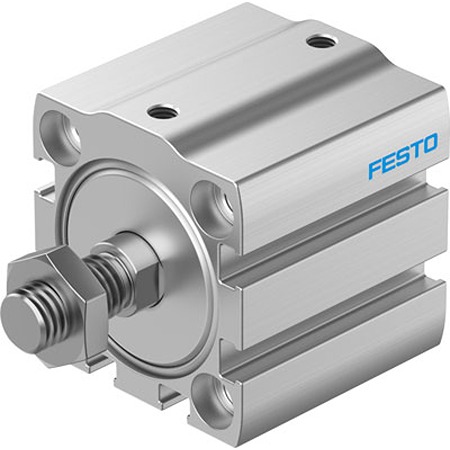

Festo Pneumatic Compact Cylinder, 32mm Bore, 5mm Stroke, ADN Series, Double Acting

Enrgtech Part No: ET28394191
|
Manufacturer Part No:
ADN-S-32-5-A-P-A-F1A
|
Manufacturer: Festo

ADN-S-32-5-A-P-A-F1A Festo Pneumatic Compact Cylinder, 32mm Bore, 5mm Stroke, ADN Series, Double Acting

Product Information

Cushioning Type:

Elastic

Stroke Length:

5mm

Weight:

117g

Series:

ADN

Bore Size:

32 mm

Piston Rod Gender:

Male

Model Number:

ADN-S-32-5-A-P-A-F1A

Maximum Operating Pressure:

1 Mpa

Action Type:

Double Acting

Body Material:

Wrought Aluminium Alloy

Standards/Approvals:

Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B2-L

Piston Rod Thread Standard:

Metric

Checking for live stock

The Festo ADN-S-32-5-A-P-A-F1A is a compact pneumatic cylinder designed for short, precise linear movement in limited installation space. With a 32 mm bore and a 5 mm stroke, it is typically used in machines that require controlled pushing, clamping, or positioning rather than long travel distances. This cylinder belongs to the ADN series, which is usually selected in automation systems where compact size, reliability, and repeatable motion matter more than force over long strokes.

Compact Pneumatic Cylinder for Tight Spaces

This is a double-acting cylinder, meaning it uses compressed air for both forward and return movement. That gives better control, faster cycle times, and consistent positioning compared to single-acting designs.

Unparalleled Benefits of Buying the Festo M5 Double-Action Pneumatic Compact Cylinder

The ADN-S-32-5-A-P-A-F1A has a slim, rectangular body that fits easily into compact machine frames. Its standardised mounting pattern allows quick integration without custom brackets or modifications.

Compact body for space-restricted installations.
Short stroke for precise, repeatable motion.
Double-acting operation for controlled movement.
Designed for continuous industrial use.

Wide Application Range

This type of compact cylinder is widely used in:

Automated assembly lines
Packaging and labelling machines
Pick-and-place systems
Clamping and positioning stations
Light material handling equipment

Datasheet - ADN-S-32-5-A-P-A-F1A(Technical Reference)
