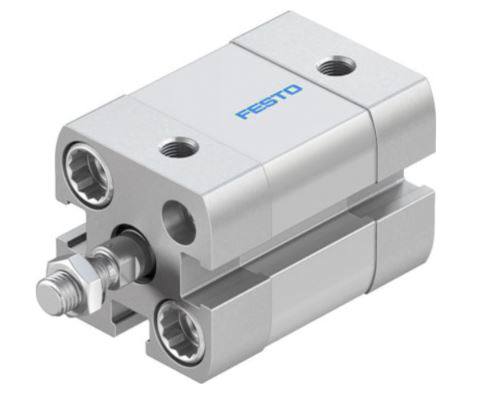

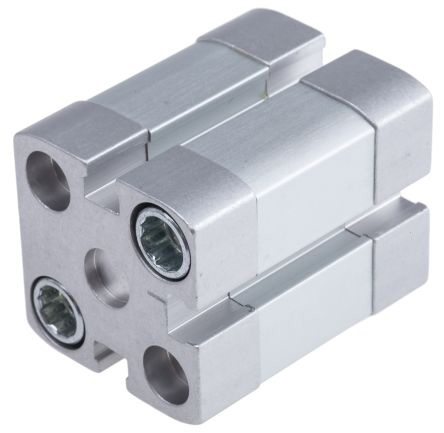

Festo Double Action Pneumatic Cylinder 12mm Bore, 25mm Stroke

Enrgtech Part No: ET16910697
|
Manufacturer Part No:
ADN-12-25-A-P-A
|
Manufacturer: Festo

ADN-12-25-A-P-A Festo Double Action Pneumatic Cylinder 12mm Bore, 25mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

25mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

12 mm

Body Material:

Aluminium

Model Number:

536208

Height:

27.5mm

Width:

27.5 mm

Length:

64.2mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-12-25-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is required. With a 12 mm bore and a 25 mm stroke, it delivers short, precise movements commonly required in automated machinery and assembly systems. This cylinder is typically used where standard cylinders are too long or bulky, making it a practical choice for compact mechanical designs.

Primary Operations of the Festo 536208 Double-Action Pneumatic Cylinder

As a double-acting cylinder, compressed air is used for both extension and retraction. This allows better control over movement and positioning compared to single-acting designs. The short stroke length helps maintain fast response times and consistent repeatability during operation.

Double-acting operation for controlled motion.
Short stroke for quick, precise movement.
Suitable for continuous automation cycles.

Usage Recommendations of the Product

It is suited for light to moderate loads where accuracy and repeatability matter more than force.

Packaging and labelling machines
Pick-and-place units
Small clamping or positioning tasks
Assembly and test fixtures
