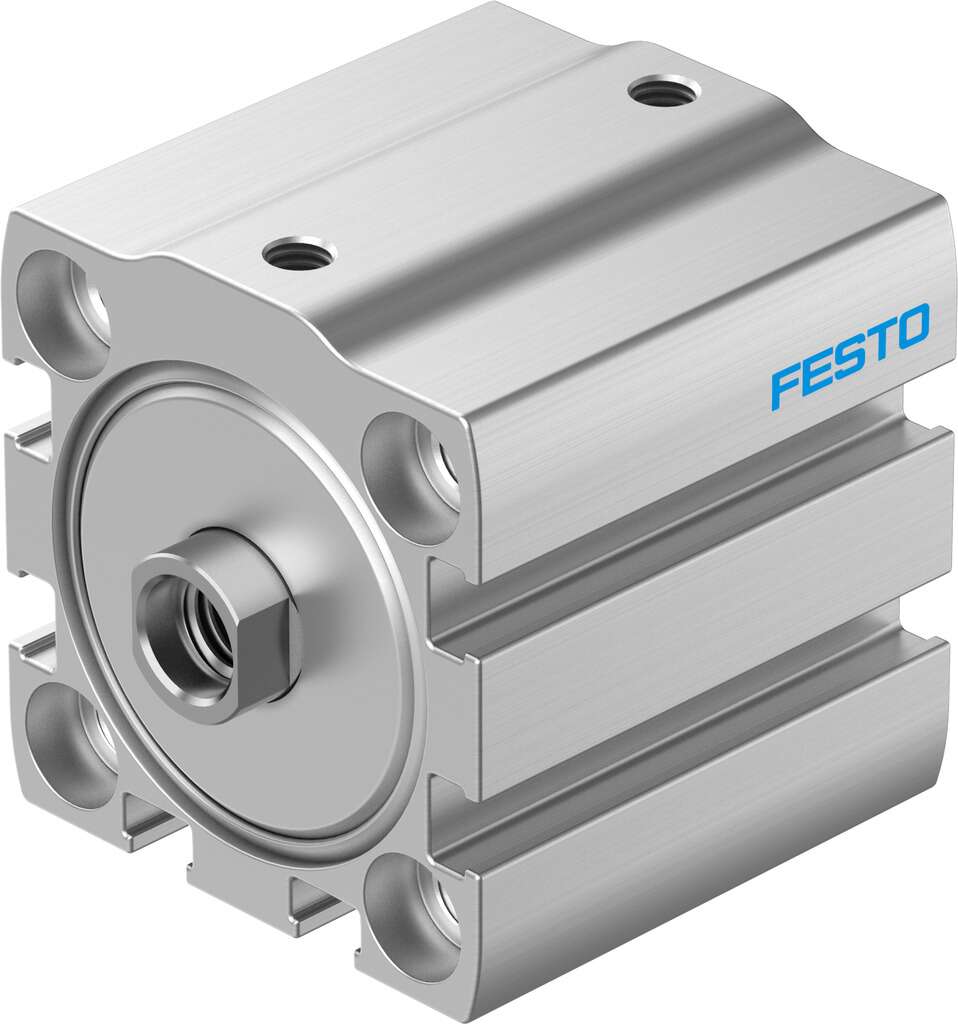

Festo Pneumatic Compact Cylinder , 32mm Bore, 5mm Stroke, ADN-S Series, Double Acting

Enrgtech Part No: ET26027904
|
Manufacturer Part No:
ADN-S-32-5-I-P-A
|
Manufacturer: Festo

ADN-S-32-5-I-P-A Festo Pneumatic Compact Cylinder , 32mm Bore, 5mm Stroke, ADN-S Series, Double Acting

Product Information

Cushioning Type:

Elastic

Stroke Length:

5mm

Weight:

117g

Series:

ADN-S-32-5-I-P-A

Bore Size:

32 mm

Piston Rod Gender:

Female

Model Number:

8076363

Maximum Operating Pressure:

1 Mpa

Action Type:

Double Acting

Body Material:

Anodised Wrought Aluminium Alloy

Standards/Approvals:

ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B2-L

Minimum Operating Temperature:

0°C

Checking for live stock

The Festo ADN-S-32-5-I-P-A is a compact pneumatic cylinder designed for applications where space is limited and precise motion is required. With a 32 mm bore and a short 5 mm stroke, this cylinder is used where controlled linear motion is required without wasting space. It is a double-acting cylinder, meaning air pressure is used for movement in both directions. This provides better control and repeatability than spring-return designs, especially in automated systems.

Special Features of the Festo 8076363 Pneumatic Compact Cylinder Double-Acting

This cylinder belongs to Festo’s compact ADN series, which is commonly used in machines with tight mounting conditions. The short stroke allows quick and accurate positioning while keeping the overall assembly small.

32 mm bore for stable force output.
5 mm stroke for short, controlled movement.
Compact body for space-restricted setups.

Why Buy It?

Being double-acting, the cylinder extends and retracts using compressed air. This allows consistent motion regardless of load direction. The piston movement is smooth and predictable, which is essential for repetitive tasks.

Product Applicable Areas

It is often selected when only a short movement is needed, but reliability and precision still matter.

Pick-and-place mechanisms
Clamping and holding devices
Small assembly stations
Packaging and labelling machines
Automation systems with limited space

Datasheet - ADN-S-32-5-I-P-A(Technical Reference)
