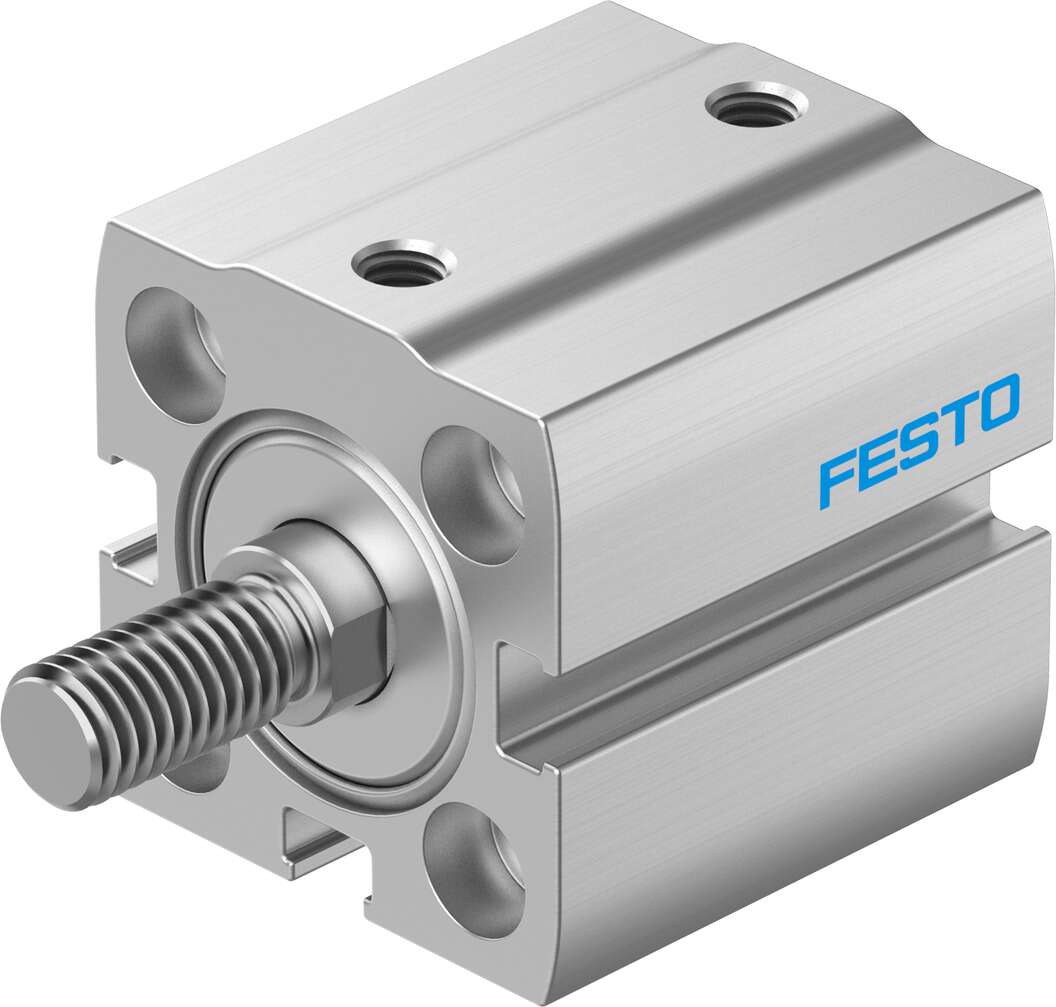

Festo Pneumatic Compact Cylinder, 20mm Bore, 30mm Stroke, ADN-S Series, Double Acting

Enrgtech Part No: ET26027842
|
Manufacturer Part No:
ADN-S-20-30-A-P-A
|
Manufacturer: Festo

ADN-S-20-30-A-P-A Festo Pneumatic Compact Cylinder, 20mm Bore, 30mm Stroke, ADN-S Series, Double Acting

Product Information

Cushioning Type:

Elastic

Stroke Length:

30mm

Weight:

65g

Series:

ADN-S

Bore Size:

20 mm

Piston Rod Gender:

Male

Model Number:

8091440

Maximum Operating Pressure:

1 Mpa

Action Type:

Double Acting

Body Material:

Anodised Wrought Aluminium Alloy

Standards/Approvals:

ISO 8573-1:2010, VDMA24364-B2-L

Minimum Operating Temperature:

0°C

Checking for live stock

The Festo ADN-S-20-30-A-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited but controlled linear movement is still required. With a 20 mm bore and a 30 mm stroke, it delivers consistent force in short travel distances, making it suitable for compact automation setups. This cylinder belongs to the ADN-S series, which is typically used in machines where standard ISO cylinders are too large or unnecessary.

Key Features and Benefits of the Festo 8091440 Pneumatic Compact Cylinder

The ADN-S design keeps the overall length short without sacrificing stability. Its compact body allows easy mounting in confined spaces such as small machine frames, tooling stations, or assembly fixtures.

20 mm piston bore.
30 mm stroke length.
Compact body for reduced installation depth.
Suitable for panel, bracket, or block mounting.
Precise push-and-pull movement is required.
Return springs are not reliable enough.
Cycle consistency matters.

Double-Acting Operation for Controlled Motion

Being double-acting, the cylinder uses compressed air for both extension and retraction. This provides better control compared to single-acting cylinders, especially in repetitive or automated motion cycles.

Usage Scenarios of the Product

The Festo ADN-S-20-30-A-P-A is usually found in:

Pick-and-place mechanisms
Small clamping and positioning tasks
Packaging and labelling machines
Assembly and testing stations
Compact industrial automation systems

Datasheet - ADN-S-20-30-A-P-A(Technical Reference)
