Manufacturer : TE Connectivity
Manufacturer Part No : 1888617-1
Enrgtech Part No : ET13847824
Product Range : PolySwitch RXEF Series

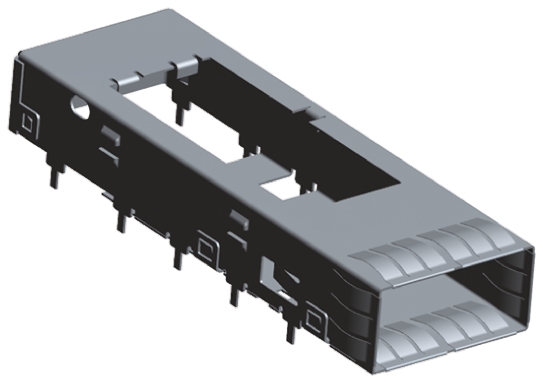

TE Connectivity QSFP+ Series Single Port QSFP+ Cage, Press-Fit Termination

TE Connectivity QSFP+ Cage Kits QSFP+ cage kits available in single (stock number 756-1120 , 756-1136 and 820-8145 ) and ganged ( 756-1133 and 756-1139 ) configurations which are designed for data rates of up to 10 Gb/s, supporting Fibre Channel, Ethernet, SDH/SONET and InfiniBand standards. These nickel silver QSFP cage kits are belly-to-belly compatible for double sided PCBs, have spring and gaskets designed for EMI containment and press fit terminations. These QSFP+ cage kits are available with lightpipe and heatsink options and are either behind bezel or through bezel mounting (please refer to table for details). A 38 position EVERCLEAR connector is available for use with the QSFP+ cage system, (see stock number 717-4341 ) along with an EMI dust plug for insertion into unused ports (see stock number 756-1127 The QSFP+ cage/connector system will accept optical or copper interfaces. The zQSPF+ Interconnect System has four channels with data rates between 25 to 40 Gbps and is backward compatible with QSPF optical modules and cable assemblies. Additional Data Table RS Stock Number Manufacturer Part Number Configuration Bezel Mount Heatsink Max Height of Heatsink above Board Lightpipe 756-1120 1888617-1 1 x 1 Through-bezel None n/a None 756-1136 1888968-1 1 x 1 Behind-bezel PCI 13.7 mm None 756-1139 2057042-1 1 x 3 Behind-bezel PCI 13.7 mm Included 756-1133 2057183-1 1 x 4 Behind-bezel PCI 13.7 mm Included 820-8145 1888781-1 1 x 1 Behind-bezel None n/a None 820-8334 1551891-1 1 x 1 Behind-bezel None n/a None 909-7129 1551892-1 1 x 1 Behind-bezel PCI n/a none Note Port spacing for through-bezel mount versions is 21mm Port spacing for behind-bezel mount versions is 23.5mm QSFP+ Connectors and Cable Assemblies - TE Connectivity The Quad Small Form-factor Pluggable (QSFP) interconnect ...
TE Connectivity QSFP+ Cage Kits QSFP+ cage kits available in single (stock number 756-1120 , 756-1136 and 820-8145 ) and ganged ( 756-1133 and 756-1139 ) configurations which are designed for data rates of up to 10 Gb/s, supporting Fibre Channel, Ethernet, SDH/SONET and InfiniBand standards. These nickel silver QSFP cage kits are belly-to-belly compatible for double sided PCBs, have spring and gaskets designed for EMI containment and press fit terminations. These QSFP+ cage kits are available with lightpipe and heatsink options and are either behind bezel or through bezel mounting (please refer to table for details). A 38 position EVERCLEAR connector is available for use with the QSFP+ cage system, (see stock number 717-4341 ) along with an EMI dust plug for insertion into unused ports (see stock number 756-1127 The QSFP+ cage/connector system will accept optical or copper interfaces. The zQSPF+ Interconnect System has four channels with data rates between 25 to 40 Gbps and is backward compatible with QSPF optical modules and cable assemblies. Additional Data Table RS Stock Number Manufacturer Part Number Configuration Bezel Mount Heatsink Max Height of Heatsink above Board Lightpipe 756-1120 1888617-1 1 x 1 Through-bezel None n/a None 756-1136 1888968-1 1 x 1 Behind-bezel PCI 13.7 mm None 756-1139 2057042-1 1 x 3 Behind-bezel PCI 13.7 mm Included 756-1133 2057183-1 1 x 4 Behind-bezel PCI 13.7 mm Included 820-8145 1888781-1 1 x 1 Behind-bezel None n/a None 820-8334 1551891-1 1 x 1 Behind-bezel None n/a None 909-7129 1551892-1 1 x 1 Behind-bezel PCI n/a none Note Port spacing for through-bezel mount versions is 21mm Port spacing for behind-bezel mount versions is 23.5mm QSFP+ Connectors and Cable Assemblies - TE Connectivity The Quad Small Form-factor Pluggable (QSFP) interconnect system from TE Connectivity is a four-channel package, offering 3 times the density of traditional SFP ports and supports speeds up to 10Gb/s per channel (suitable for 8G Fiber Channel and 10G Ethernet). The system is ideal for switches, routers, and host bus adapters (HBA's) where bandwidth is essential.

Product Information

Series : QSFP+
Accessory Type : Cage Assembly
Form Factor : QSFP+
rohs : RoHS Certificate of Compliance

Technical Documents

  • Single pluggable cage assembly, QSFP Series, 1888617-1 - Customer Drawing (Technical Reference)

Availability:
6
in stock
Check now

Rate:
  • 1-9
    +
    £ 6.573
  • 10-24
    +
    £ 6.302
  • 25-49
    +
    £ 5.722

Qty:
