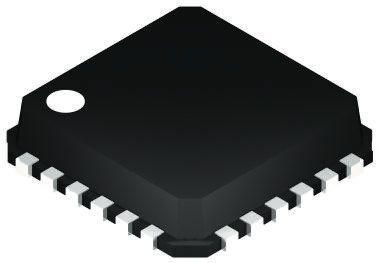

Analog Devices ADF4360-4BCPZ, Frequency Synthesizer, 1450 → 1750 MHz, 24-Pin CP 24

ADF4360-4BCPZ Analog Devices , Frequency Synthesizer, 1450 → 1750 MHz, 24-Pin CP 24
Analog Devices

Product Information

Dimensions:
4 x 4 x 0.83mm
Mounting Type:
Surface Mount
Maximum Output Frequency:
1750MHz
Minimum Output Frequency:
1450MHz
Minimum Operating Supply Voltage:
3 V
Height:
0.83mm
Width:
4mm
Length:
4mm
Maximum Input Frequency:
250MHz
Package Type:
CP 24
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Frequency Synthesizer 1450 → 1750 MHz 24-Pin CP 24 manufactured by Analog Devices. The manufacturer part number is ADF4360-4BCPZ. The given dimensions of the product include 4 x 4 x 0.83mm. The product is available in surface mount configuration. Additionally, it has a maximum 1750mhz output frequency . It has a minimum 1450mhz output frequency . While its minimum operating supply voltage is 3 v. In addition, the height is 0.83mm. Furthermore, the product is 4mm wide. Its accurate length is 4mm. The product has a maximum 250mhz input frequency . The package is a sort of cp 24. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 24 pins.

pdf icon
ADF4360-4 Integrated Synthesizer and VCO Data Sheet(Technical Reference)
