Manufacturer : TE Connectivity
Manufacturer Part No : 2-5499206-9
Enrgtech Part No : ET10002736
Product Range : PolySwitch RXEF Series

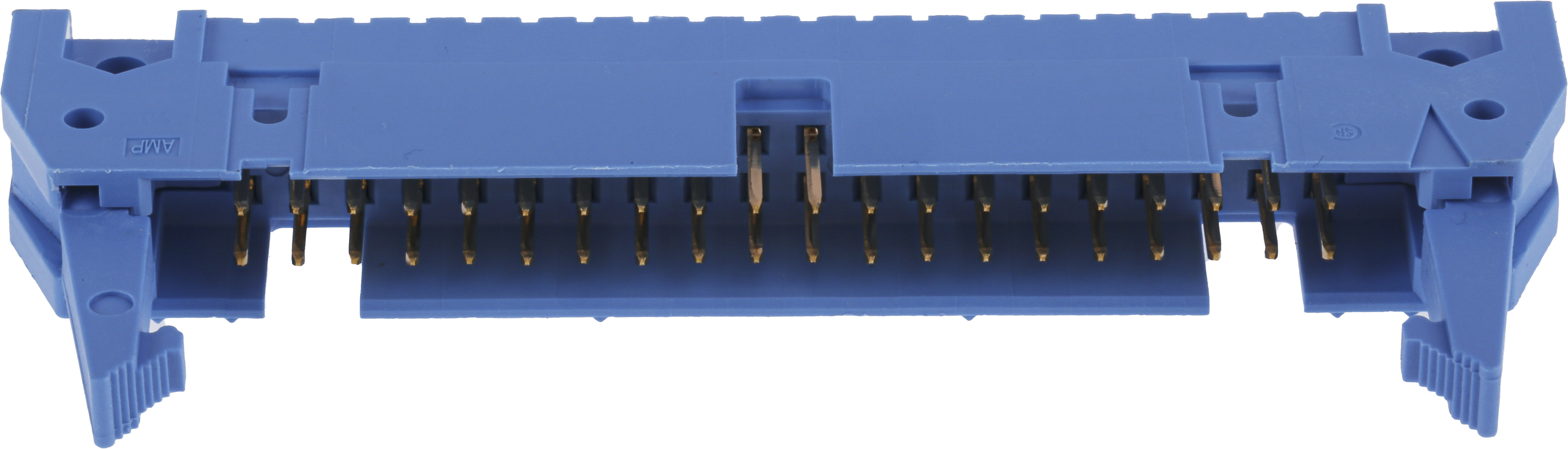

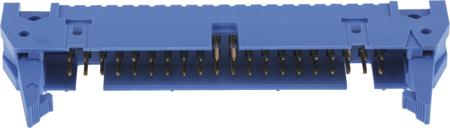

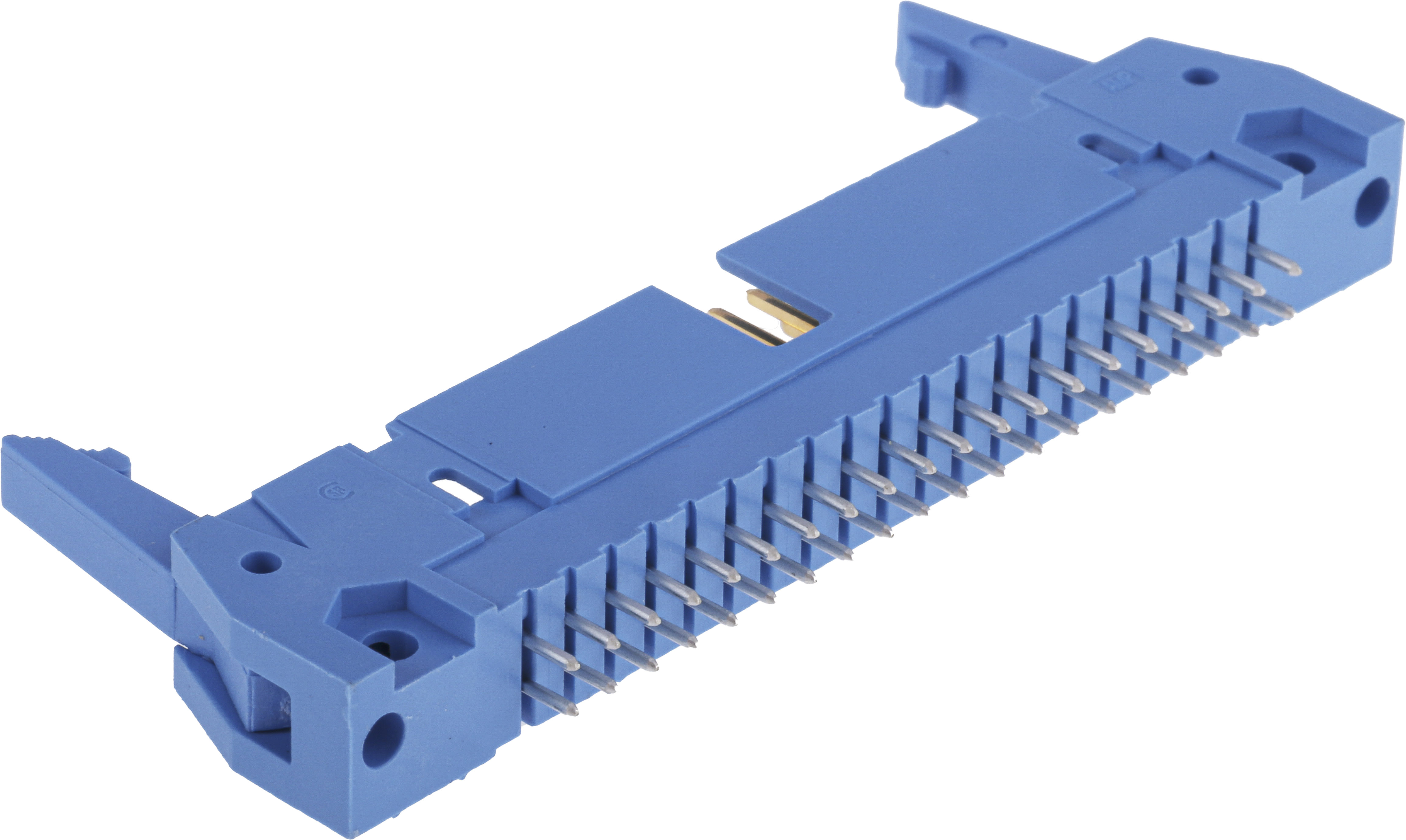

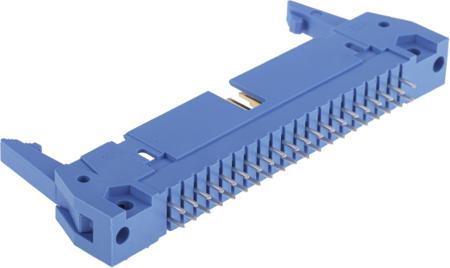

TE Connectivity AMP-LATCH, 2.54mm Pitch, 40 Way, 2 Row, Straight PCB Header, Through Hole

TE Connectivity AMP-LATCH Universal Ejection Style 2.54mm x 2.54mm PCB Headers AMP-LATCH universal ejection style PCB header connectors with a 2.54 x 2.54 mm centreline. These AMP-LATCH ejection headers have military, centre and dual polarization for accurate mating. Versions of these AMP-LATCH universal headers feature ejector latches which enable a secure connection to and easy removal from the mating IDC ribbon cable receptacle connectors. These AMP-LATCH universal ribbon cable header connectors are available without latches or with a long or short latch style Connectors with long latches mate with receptacle connectors without strain relief. Connectors with short latches mate with receptacle connectors with strain relief. Features and Benefits • Military, centre and dual polarization • Ejector latches for secure mating connection and easy removal • Long and short ejection latch options Applications These AMP-LATCH PCB connectors are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing Additional Data Manufacturer Part Number Orientation Latch Style Contact Plating Solder Tail Length x-5499910-x Vertical PCB Mount Short Gold flash (0.00038) 2.79mm x-5499160-x Vertical PCB Mount Short Gold flash (0.00076) 2.79mm x-5499374-x Vertical PCB Mount Short Gold flash (0.00076) 3.94mm x-5499923-x Vertical PCB Mount Long Gold flash (0.00038) 3.94mm x-5102321-x Vertical PCB Mount Long Gold flash (0.00076) 3.94mm x-5499206-x Vertical PCB Mount Long Gold flash (0.00076) 2.79mm x-5499913-x Right Angle PCB Mount Short Gold flash (0.00038) 2.79mm x-5499345-x Right Angle PCB Mount Short Gold flash (0.00076) 2.79mm x-5499786-x Right Angle PCB Mount Long Gold flash (0...
TE Connectivity AMP-LATCH Universal Ejection Style 2.54mm x 2.54mm PCB Headers AMP-LATCH universal ejection style PCB header connectors with a 2.54 x 2.54 mm centreline. These AMP-LATCH ejection headers have military, centre and dual polarization for accurate mating. Versions of these AMP-LATCH universal headers feature ejector latches which enable a secure connection to and easy removal from the mating IDC ribbon cable receptacle connectors. These AMP-LATCH universal ribbon cable header connectors are available without latches or with a long or short latch style Connectors with long latches mate with receptacle connectors without strain relief. Connectors with short latches mate with receptacle connectors with strain relief. Features and Benefits • Military, centre and dual polarization • Ejector latches for secure mating connection and easy removal • Long and short ejection latch options Applications These AMP-LATCH PCB connectors are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing Additional Data Manufacturer Part Number Orientation Latch Style Contact Plating Solder Tail Length x-5499910-x Vertical PCB Mount Short Gold flash (0.00038) 2.79mm x-5499160-x Vertical PCB Mount Short Gold flash (0.00076) 2.79mm x-5499374-x Vertical PCB Mount Short Gold flash (0.00076) 3.94mm x-5499923-x Vertical PCB Mount Long Gold flash (0.00038) 3.94mm x-5102321-x Vertical PCB Mount Long Gold flash (0.00076) 3.94mm x-5499206-x Vertical PCB Mount Long Gold flash (0.00076) 2.79mm x-5499913-x Right Angle PCB Mount Short Gold flash (0.00038) 2.79mm x-5499345-x Right Angle PCB Mount Short Gold flash (0.00076) 2.79mm x-5499786-x Right Angle PCB Mount Long Gold flash (0.00038) 2.79mm x-5102322-x Right Angle PCB Mount Long Gold flash (0.00076) 3.94mm x-5499141-x Right Angle PCB Mount Long Gold flash (0.00076) 2.79mm x-5102153-x Vertical PCB Mount None Gold flash (0.00038) 2.79mm x-5102154-x Vertical PCB Mount None Gold flash (0.00076) 2.79mm x-5102155-x Vertical PCB Mount None Gold flash (0.00076) 3.94mm x-5102156-x Vertical PCB Mount None Gold flash (0.00076) 3.94mm x-5102159-x Right Angle PCB Mount None Gold flash (0.00038) 2.79mm x-5102160-x Right Angle PCB Mount None Gold flash (0.00076) 2.79mm x-102153-x Vertical PCB Mount None Gold flash (0.00038) 2.79mm x-102154-x Vertical PCB Mount None Gold flash (0.00076) 2.79mm TE Connectivity AMP-Latch IDC Ribbon Cable Connectors The AMP-LATCH range of ribbon cable connectors consist of PCB headers and IDC ribbon cable receptacles. This connector system enables reliable gas tight connections to be made between ribbon cable and PCB circuitry allowing one PCB subsystem to be connected to another

Product Information

Shrouded/Unshrouded : Shrouded
Current Rating : 1.0A
Mounting Type : Through Hole
Series : AMP-LATCH
Body Orientation : Straight
Termination Method : Solder
Connector System : Wire to Board
Number of Rows : 2
Contact Plating : Gold
Pitch : 2.54mm
Number of Contacts : 40
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze
