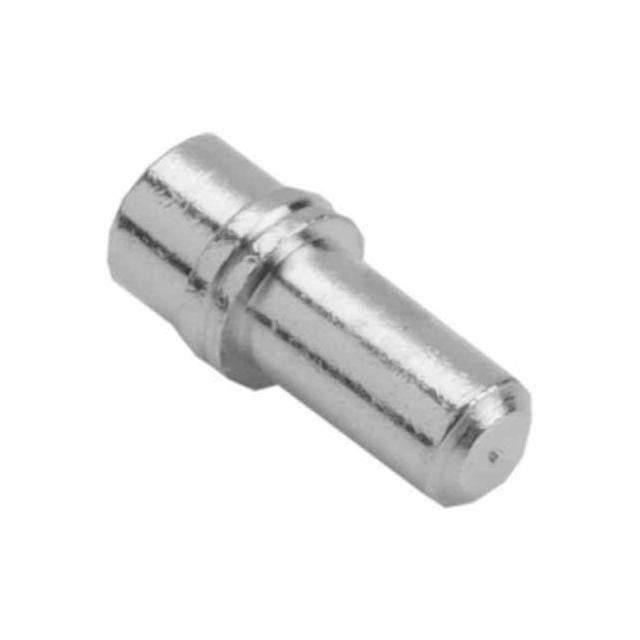

Harwin Inc. H8505-46
Product Information
Accepts Square Pin Size:
-
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Tail Diameter:
-
Board Thickness:
-
Contact Finish Thickness:
157.5µin (4.00µm)
Flange Diameter:
0.105" (2.67mm)
Length - Overall:
0.232" (5.89mm)
Tail Type:
No Tail
REACH Status:
REACH Unaffected
Socket Depth:
0.183" (4.65mm)
Accepts Pin Diameter:
0.024" ~ 0.033" (0.60mm ~ 0.85mm)
Package:
Bulk
Mounting Hole Diameter:
0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Pin Hole Diameter:
-
Insertion Force:
1.50N ~ 5.01N
Features:
-
Series:
-
Termination:
Solder
Operating Temperature:
-55°C ~ 125°C
ECCN:
EAR99
Base Product Number:
H8505
Contact Material:
Beryllium Copper
Checking for live stock
FAQs
Yes. You can also search H8505-46 on website for other similar products.
We accept all major payment methods for all products including ET17814750. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with H8505-46 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PC Pin Receptacles, Socket Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. H8505-46. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. H8505-46.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17814750 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET17814750.
Yes. We ship H8505-46 Internationally to many countries around the world.
This is manufactured by Harwin Inc.. The manufacturer part number is H8505-46. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It has 157.5µin (4.00µm) of contact finishing thickness. The flange diameter is 0.105" (2.67mm). The product has an integral 0.232" (5.89mm) overall length. It is equipped with a no tail tail. In addition, it is reach unaffected. The socket is 0.183" (4.65mm) deep. Allow pins with a 0.024" ~ 0.033" (0.60mm ~ 0.85mm) diameters. It is shipped in bulk package . The given diameter of mounting hole is 0.075" ~ 0.079" (1.91mm ~ 2.01mm). Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). Has an 1.50n ~ 5.01n insertion force. The product features solder termination style. The product has -55°c ~ 125°c operating temperature range. The product is designated with the ear99 code number. Moreover, it corresponds to h8505, a base product number of the product. The product is made from sturdy beryllium copper materials.
