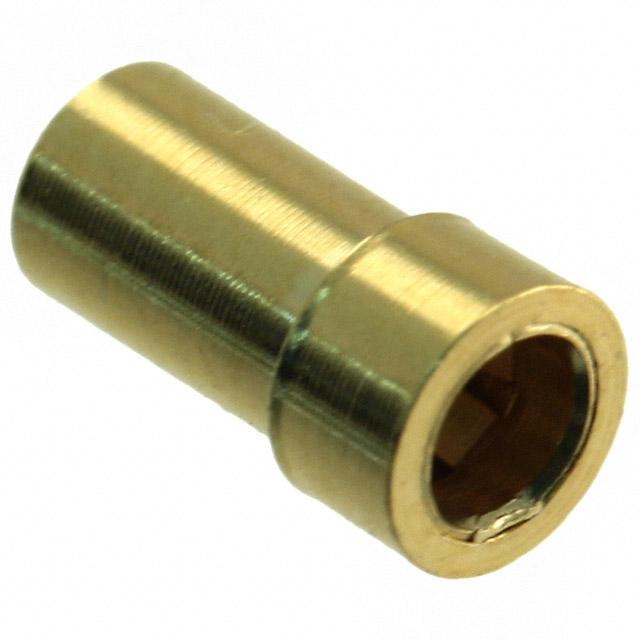

Mill-Max Manufacturing Corp. 9801-0-15-15-23-27-10-0

9801-0-15-15-23-27-10-0 Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

Product Information

Accepts Square Pin Size:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Tail Diameter:
-
Board Thickness:
-
Contact Finish Thickness:
30.0µin (0.76µm)
Flange Diameter:
0.120" (3.05mm)
Length - Overall:
0.230" (5.84mm)
Tail Type:
No Tail
REACH Status:
REACH Unaffected
Socket Depth:
0.195" (4.95mm)
Manufacturer:
Mill-Max Manufacturing Corp.
Accepts Pin Diameter:
0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Mounting Hole Diameter:
0.102" (2.59mm)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Insertion Force:
-
standardLeadTime:
5 Weeks
Pin Hole Diameter:
0.088" (2.24mm)
Features:
-
Series:
9801
Termination:
Solder
Operating Temperature:
-55°C ~ 125°C
Packaging:
Bulk
ECCN:
EAR99
Base Product Number:
9801-0
Contact Material:
Beryllium Copper
Checking for live stock

This is manufactured by Mill-Max Manufacturing Corp.. The manufacturer part number is 9801-0-15-15-23-27-10-0. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It has 30.0µin (0.76µm) of contact finishing thickness. The flange diameter is 0.120" (3.05mm). The product has an integral 0.230" (5.84mm) overall length. It is equipped with a no tail tail. In addition, it is reach unaffected. The socket is 0.195" (4.95mm) deep. The mill-max manufacturing corp.'s product offers user-desired applications. Allow pins with a 0.045" ~ 0.065" (1.14mm ~ 1.65mm) diameters. The given diameter of mounting hole is 0.102" (2.59mm). Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 5 weeks standard lead time. The diameter of the pin hole is 0.088" (2.24mm). The product 9801, is a highly preferred choice for users. The product features solder termination style. The product has -55°c ~ 125°c operating temperature range. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 9801-0, a base product number of the product. The product is made from sturdy beryllium copper materials.
