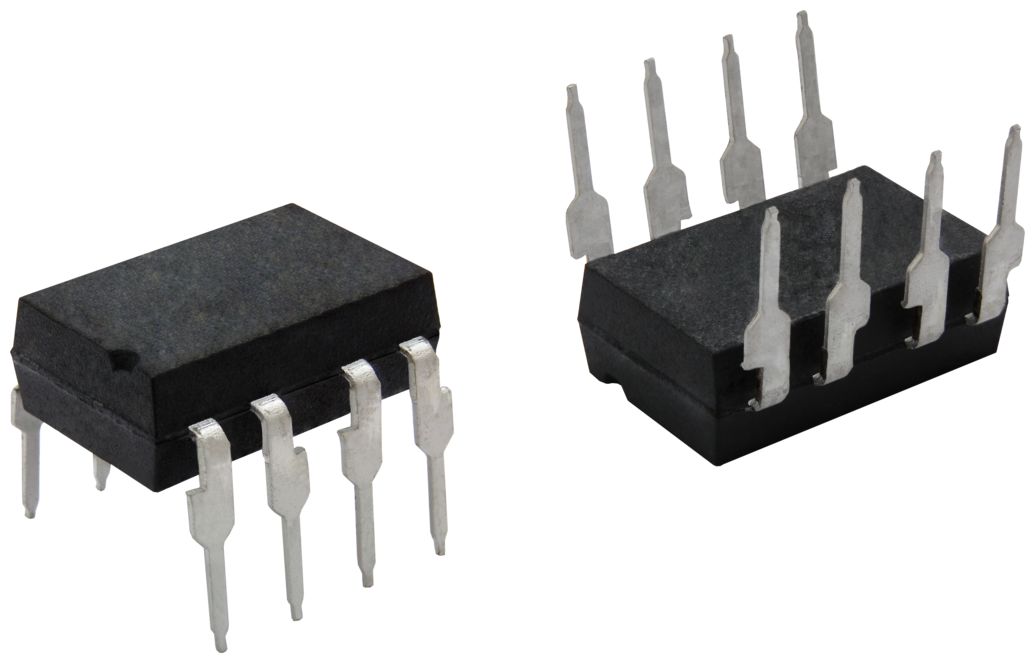

Vishay 6N137, AC/DC Input NMOS Output Optocoupler, Surface Mount, 8-Pin DIP

Enrgtech Part No: ET28368810
|
Manufacturer Part No:
6N137
|
Manufacturer: Vishay

6N137 Vishay , AC/DC Input NMOS Output Optocoupler, Surface Mount, 8-Pin DIP

Product Information

Maximum Forward Voltage:

1.7V

Output Device:

NMOS

Input Current Type:

AC/DC

Mounting Type:

Surface Mount

Series:

6N137

Number of Pins:

Number of Channels:

Package Type:

DIP

Checking for live stock

The Vishay 6N137 is a high-performance AC/DC input NMOS output optocoupler designed for applications requiring fast, noise-resistant signal isolation. Housed in a compact 8-pin DIP surface-mount package, this optocoupler features a high-speed GaAs infrared LED coupled with an integrated photodetector, ensuring superior electrical isolation and data transmission. Additionally, built for demanding environments, the 6N137 offers excellent immunity to common-mode transients, making it perfect for various systems. Its low power usage and broad operating temperature range enhance design flexibility for embedded and switching applications.

Crucial Features of the Vishay 6N137, AC/DC Input NMOS Output Optocoupler, Surface Mount

High common-mode rejection (CMR) for reliable performance in noisy environments.
Operates efficiently in power-sensitive designs.
Easy integration with standard logic systems.
Comes in a space-saving 8-pin DIP package suitable for automated assembly.

Unmatched Benefits to Users

Supports speeds up to 10 Mbps for fast digital signal transmission.
Provides robust protection between high- and low-voltage circuits.
Compact form factor ideal for dense PCB layouts.
Compatible with both AC and DC input signals for design flexibility.

Typical Uses of the 6N137, AC/DC Input NMOS Output Optocoupler

Microcontroller Interfaces
Industrial Automation Systems
Switching Power Supplies
Data Communication Devices
Digital Logic Isolation

Datasheet - 6N137(Technical Reference)
