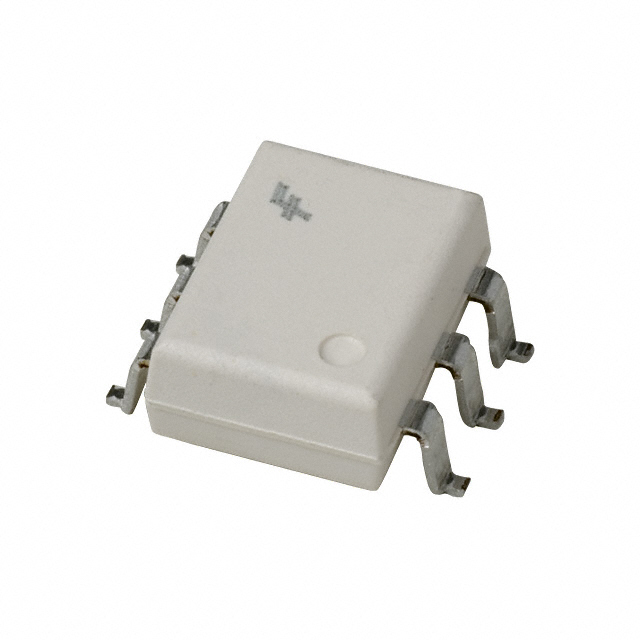

onsemi, H11L1SM DC Input Logic Gate Output Optocoupler, Surface Mount, 6-Pin MDIP
Product Information
Maximum Forward Voltage:
1.5V
Output Device:
Logic Gate
Isolation Voltage:
7.5 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
0.1µs
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
MDIP
Maximum Input Current:
30 mA
Typical Fall Time:
0.1µs
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
50 mA
Propagation Delay tpLH / tpHL (Max):
4µs, 4µs
Operating Temperature:
-40°C ~ 85°C
Input Type:
DC
Package / Case:
6-SMD, Gull Wing
Rise / Fall Time (Typ):
100ns, 100ns
REACH Status:
REACH Unaffected
Output Type:
Open Collector
edacadModel:
H11L1SM Models
Current - DC Forward (If) (Max):
30mA
Number of Channels:
1
Data Rate:
1MHz
edacadModelUrl:
/en/models/400369
Inputs - Side 1/Side 2:
1/0
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
-
Voltage - Forward (Vf) (Typ):
1.2V
standardLeadTime:
13 Weeks
Voltage - Isolation:
4170Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-SMD
Voltage - Supply:
3V ~ 15V
Base Product Number:
H11L1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search H11L1SM on website for other similar products.
We accept all major payment methods for all products including ET21471190. Please check your shopping cart at the time of order.
You can order onsemi brand products with H11L1SM directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi, H11L1SM DC Input Logic Gate Output Optocoupler, Surface Mount, 6-Pin MDIP. You can also check on our website or by contacting our customer support team for further order details on onsemi, H11L1SM DC Input Logic Gate Output Optocoupler, Surface Mount, 6-Pin MDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21471190 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21471190.
Yes. We ship H11L1SM Internationally to many countries around the world.
This is DC Input Logic Gate Output Optocoupler Surface Mount 6-Pin MDIP manufactured by onsemi. The manufacturer part number is H11L1SM. It also carries 1.5v of maximum forward voltage. Its output device includes logic gate. It has 7.5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 0.1µs rise time . Its input is of dc type . It is comprised of 6 pins. It is supplied with 1 channels. The package is a sort of mdip. While its maximum input current includes 30 ma. It has a typical 0.1µs fall time . It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 50 ma output or channel current. It has a maximum propagation delay of 4µs, 4µs. The product has -40°c ~ 85°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-smd, gull wing. The typical rise and fall time of the product is 100ns, 100ns. In addition, it is reach unaffected. Furthermore, it has aopen collector output. The maximum DC forward current of the product is 30ma. It has a maximised data speed rate of 1mhz. The typical 1/0 inputs of both sides (side 1/side 2). It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.2v. It has a long 13 weeks standard lead time. 4170vrms of isolation voltage. 6-smd is the supplier device package value. It has optimum voltage supply of 3v ~ 15v. Moreover, it corresponds to h11l1, a base product number of the product. The product is designated with the ear99 code number.
