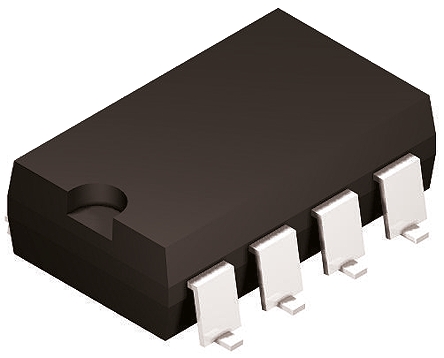

Broadcom HCPL-2211-300E DC Input Logic Gate Output Optocoupler, Surface Mount, 8-Pin DIP

HCPL-2211-300E Broadcom DC Input Logic Gate Output Optocoupler, Surface Mount, 8-Pin DIP
HCPL-2211-300E Broadcom DC Input Logic Gate Output Optocoupler, Surface Mount, 8-Pin DIP
Broadcom

Product Information

Maximum Forward Voltage:
1.85V
Isolation Voltage:
3750Vrms
Minimum Operating Temperature:
-40°C
Series:
HCPL
Typical Rise Time:
30ns
Typical Fall Time:
7ns
Automotive Standard:
No
Packaging:
Tape & Reel
Maximum Operating Temperature:
85°C
Input Current Type:
DC
Package Type:
DIP
Standards/Approvals:
IEC/EN/DIN EN 60747-5-5, UL1577, CSA
Number of Channels:
1
Number of Pins:
8
Product Type:
Optocoupler
Maximum Input Current:
1.8mA
Logic Output:
Yes
Mount Type:
Surface Mount
RoHs Compliant
Checking for live stock

This is DC Input Logic Gate Output Optocoupler Surface Mount 8-Pin DIP manufactured by Broadcom. The manufacturer part number is HCPL-2211-300E. It also carries 1.85v of maximum forward voltage. It has 3750vrms isolation voltage. Whereas, the minimum operating temperature of the product is -40°c. The product hcpl, is a highly preferred choice for users. It has a typical 30ns rise time . It has a typical 7ns fall time . The product complies with automotive standard - no. In addition, tape & reel is the available packaging type of the product. It has a maximum operating temperature of 85°c. Its input is of dc type . The package is a sort of dip. It is supplied with 1 channels. It is comprised of 8 pins. optocoupler is a versatile product designed to provide user-defined applications. While its maximum input current includes 1.8ma. It includes a logic output yes . It has a surface mount type mount .

pdf icon
Datasheet HCPL-2211-300E(Technical Reference)
