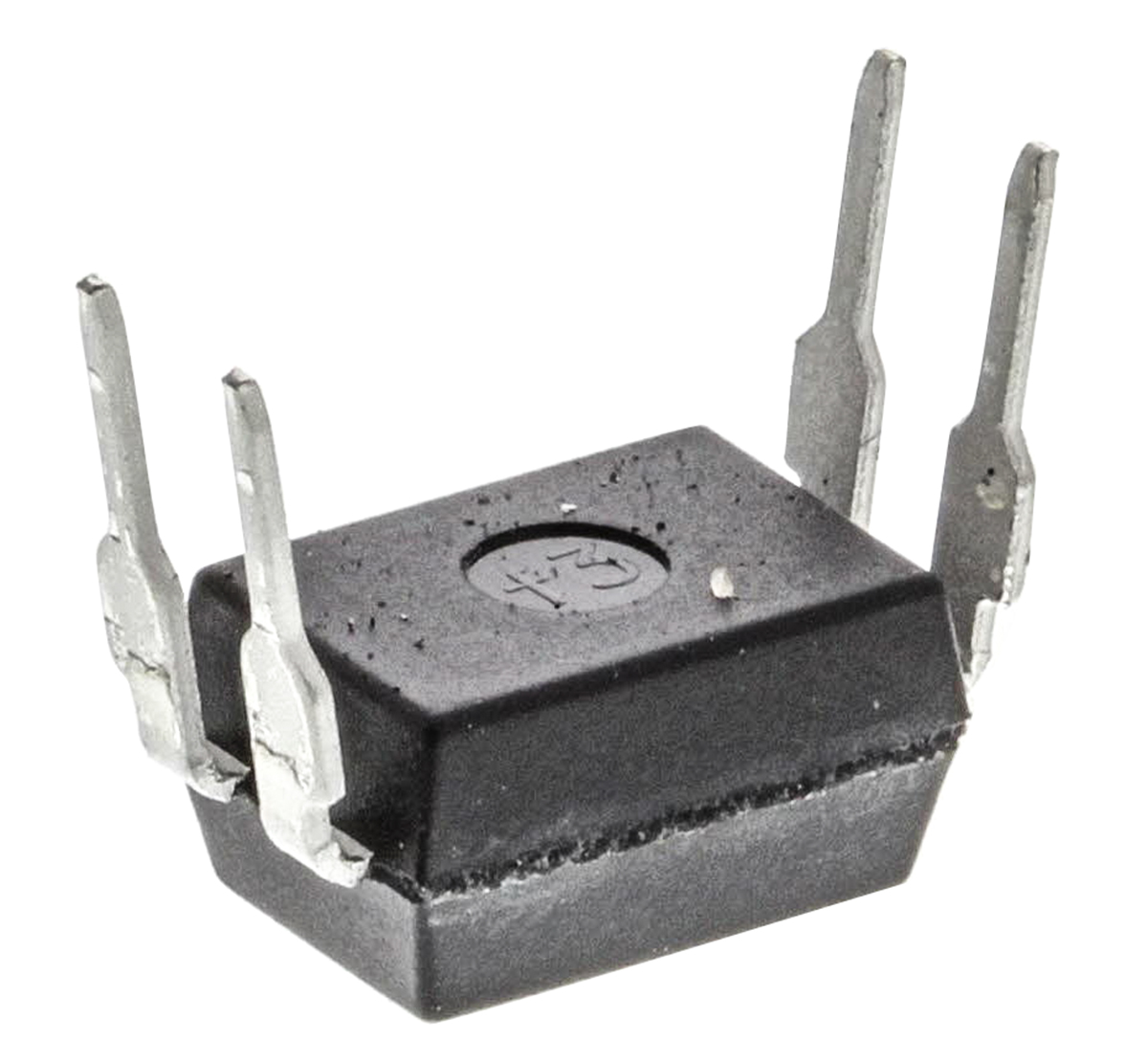

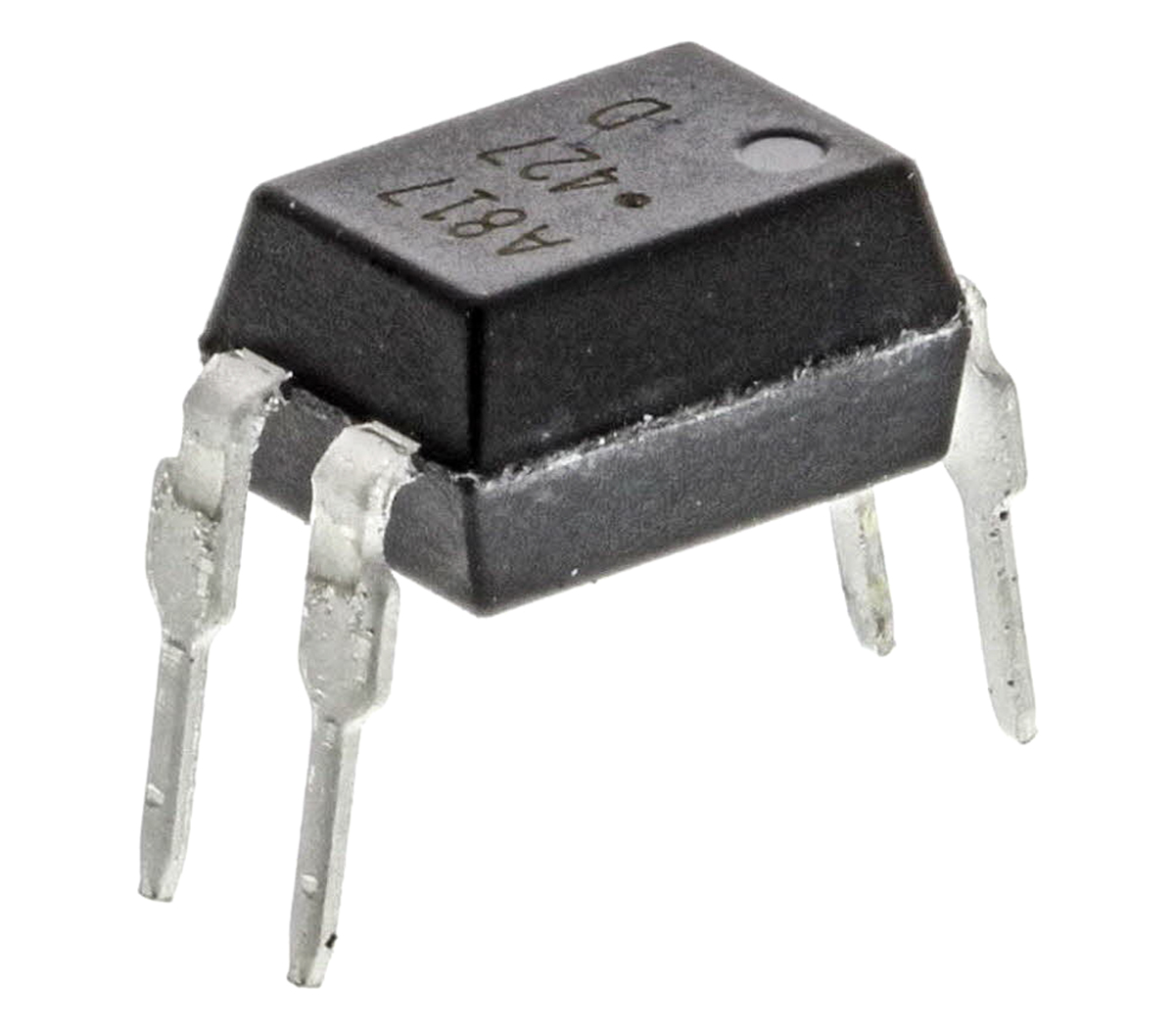

Broadcom HCPL-817-00DE DC Input Transistor Output Optocoupler, Through Hole, 4-Pin DIP

HCPL-817-00DE Broadcom DC Input Transistor Output Optocoupler, Through Hole, 4-Pin DIP
HCPL-817-00DE
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
5000 Vrms
Mounting Type:
Through Hole
Series:
HCPL
Typical Rise Time:
4µs
Maximum Current Transfer Ratio:
600%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
5 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Optocoupler Through Hole 4-Pin DIP manufactured by Broadcom. The manufacturer part number is HCPL-817-00DE. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 5000 vrms isolation voltage. The product is available in through hole configuration. The product hcpl, is a highly preferred choice for users. It has a typical 4µs rise time . It has a maximum 600% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes 5 ma. It has a typical 3µs fall time .

pdf icon
HCPL-817 Phototransistor Optocoupler High Density Mounting Type Data Sheet(Technical Reference)
